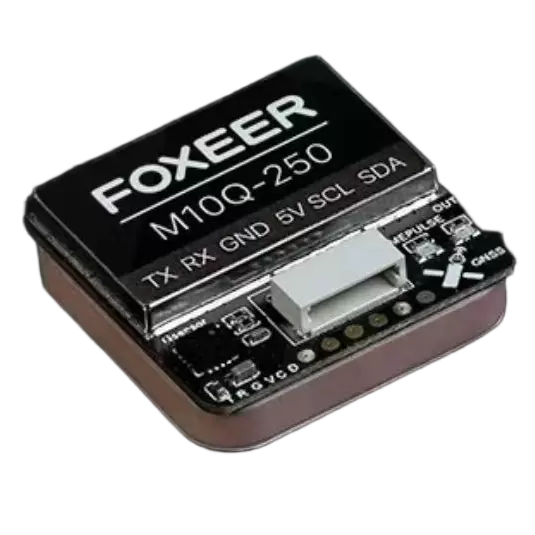

Foxeer M10Q 250 GPS
Foxeer M10Q 250 GPS
Foxeer M10Q 250 GPS
Foxeer M10Q 250 GPS
Foxeer M10Q 250 GPS
Foxeer M10Q 250 GPS

Foxeer M10Q 250 GPS

The Foxeer M10Q 250 GPS is a high-performance navigation module for RC aircraft and FPV drones. It supports multi-constellations (GPS L1/GLONASS L1/BDS B1/Galileo E) for 1.5m outdoor positioning accuracy, features a high-sensitivity ceramic antenna (-166dBm trace sensitivity) for stable signals, and works with dual NMEA/UBX protocols for easy system integration. With a compact size, lightweight design (~2.7g), and -40°C to +85°C operating range, it fits tight installs and handles harsh conditions


Contact Whatsapp Contact Sales Team

Foxeer M10Q 250 GPS

  • 1.5m Outdoor Accuracy

  • -166dBm Sensitivity

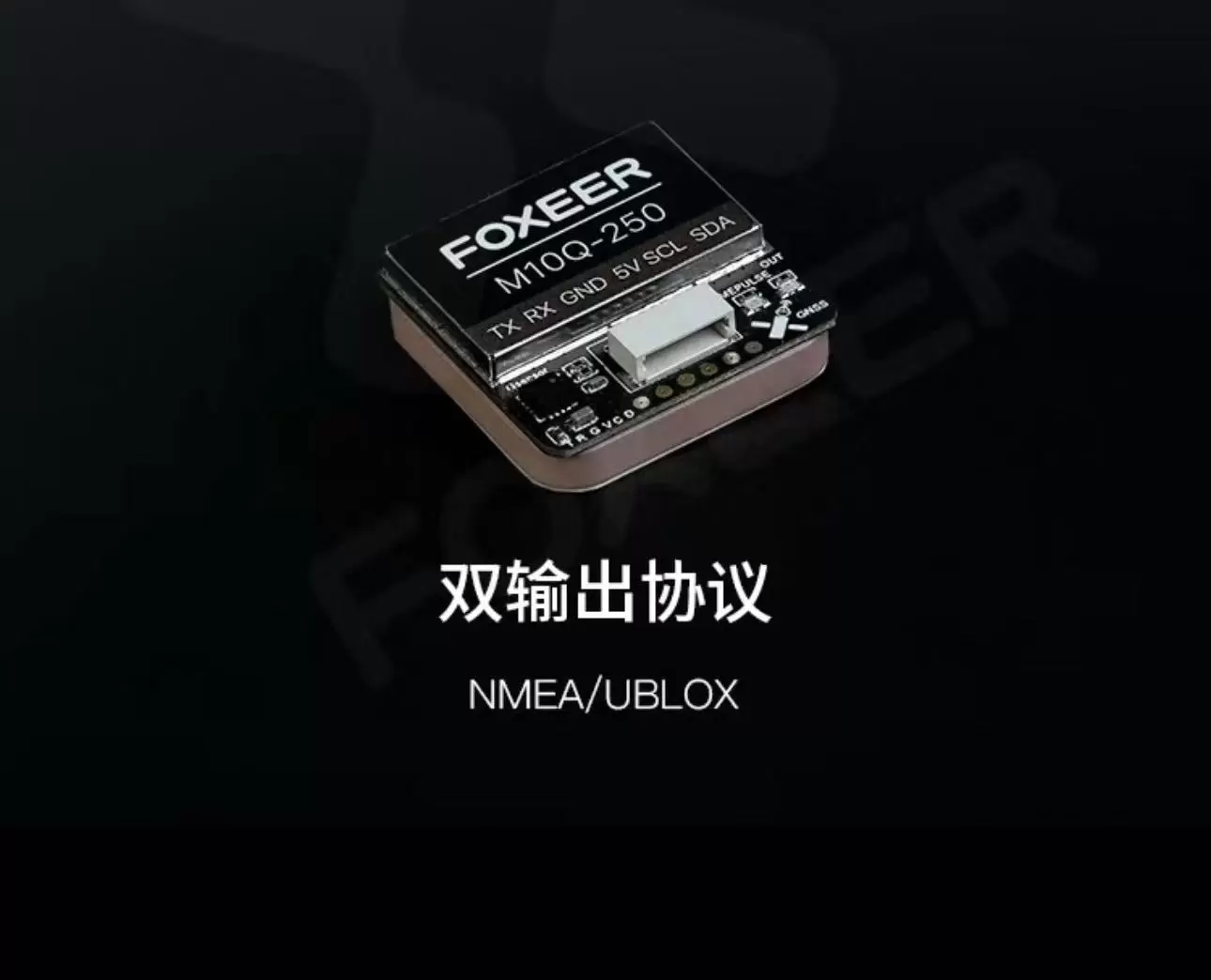

  • Dual NMEA/UBX Protocol

  • ~2.7g Compact Build

Product Feature

  • Precise Multi-Constellation Positioning

  • Reliable Signal Reception

  • Broad System Compatibility

  • Tough & Compact Design


Product Parameters

Parameter TypeSpecifications
Core Chip & Positioning- Chipset: M10 (10th-generation)
- Outdoor Positioning Accuracy: 1.5m
- Speed Accuracy: 0.05 m/s
Satellite ConstellationsGPS L1, GLONASS L1, BDS B1, Galileo E, SBAS L1, QZSS L1
Signal & Protocol- Antenna: High-performance ceramic
- Trace Sensitivity: -166 dBm
- Protocols: NMEA / UBX
- Update Rate: 1Hz - 10Hz (default 10Hz)
Electrical Specs- Input Voltage: 5V DC
- Baud Rate: 115200 bps
Physical & Environmental- Weight: ~2.7g
- Dimension: 12.5 × 17 × 5 mm
- Operating Temp.: -40°C to +85°C
- Storage Temp.: -40°C to +105°C
Dynamic Limits- Max Altitude: 50,000m
- Max Speed: 500 m/s
- Max Acceleration: 4g
