Body material:High-strength carbon fiber.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe

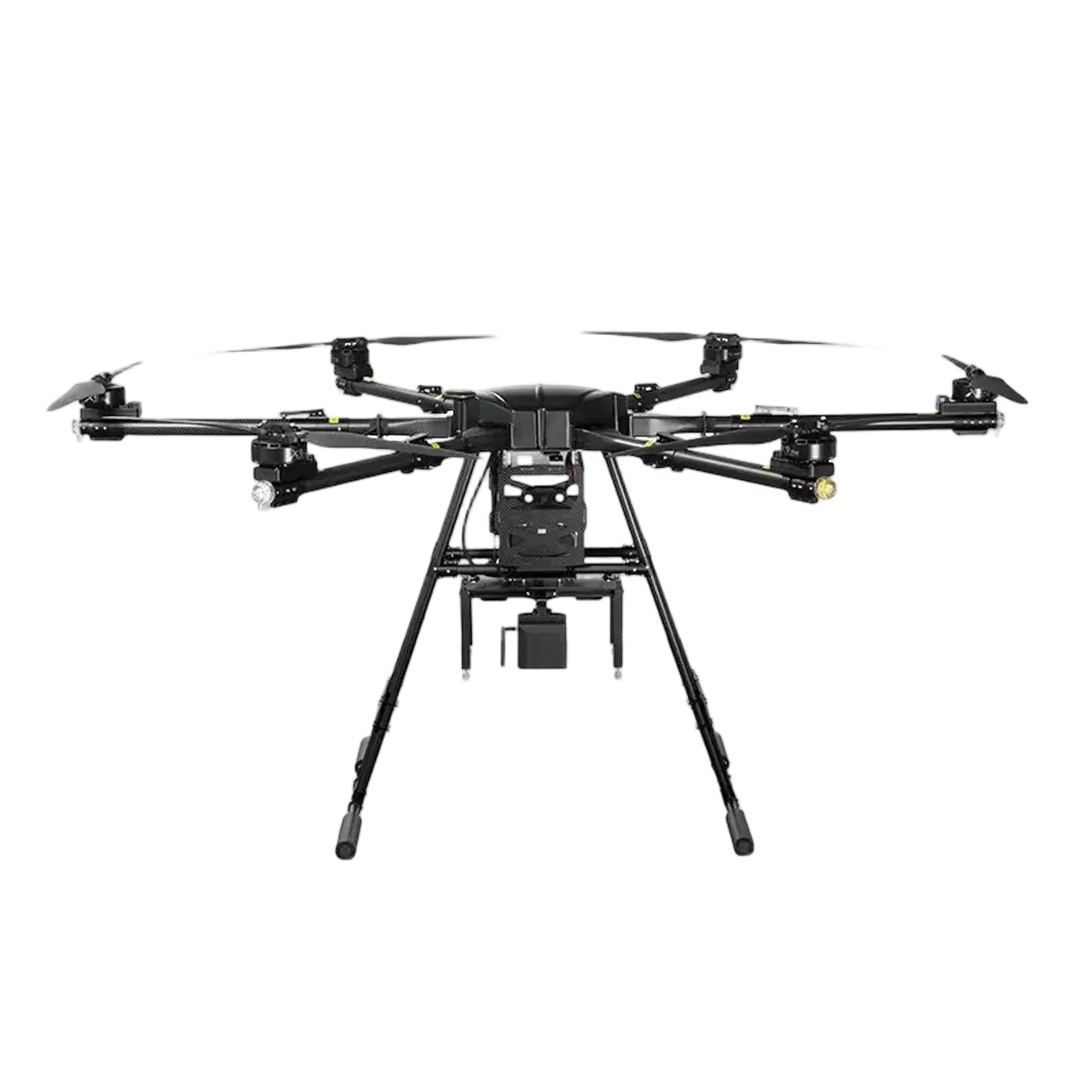

Home / Products / Drone Platform / Firefighting Drone / AG-30 Fire-extinguishing and Emergency Response UAV - Flight Platform, excluding lens and fire-extinguishing bombs
Body material:High-strength carbon fiber.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
30KG
Maximum payload
20m/s
Never Exceed Speed
5000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: High-strength carbon fiber
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight: 20000g (depending on custom strength).
Maximum take-off weight: 55.6kg.
| Parameter | Specification |
| Model | AG-30 |
| Material | High-strength carbon fibe |
| Number of Rotors | 6 Rotors |
| Wheelbase | ≤1950mm (±20mm) |
| Unfolded Size | 2080×1820×1000mm (±20mm） |
| Folded Size | 1200×1100×1000mm (±20mm) |
| Empty Weight | ≤20KG (excluding battery weight） |
| Maximum Payload | ≤30KG |
| Maximum Takeoff Weight | ≤55.6KG |
| Maximum Flight Speed | ≤20m/s |
| Maximum Ascent Speed | ≤5m/s |
| Maximum Takeoff Altitude | 5000m |
| Endurance | 50min (No Load) |
| 30min (10Load) | |
| 25min (20kg Load) | |
| 20min (30kg Load) | |
| Positioning System | 4G communication, RTK, obstacle avoidance rada |
| Power Battery | 14S 30000mA |
| Charger | Intelligent Super Fast Chargin |
| Remote Control | 7 inch HD high-brightness LED touch scree |
| Control Distance | 10KM (Ground-to-Air, Line-of-Sight) |
| Max Wind Resistance | ≤Level 6 |
| Operating Temperature | -20℃ to 65℃ |
*
*
