Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
30KG
Maximum payload
18m/s
Never Exceed Speed
4000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight: 21000g (depending on custom strength).
Maximum take-off weight: 58 kg.
Parameter | Specification |
|---|---|

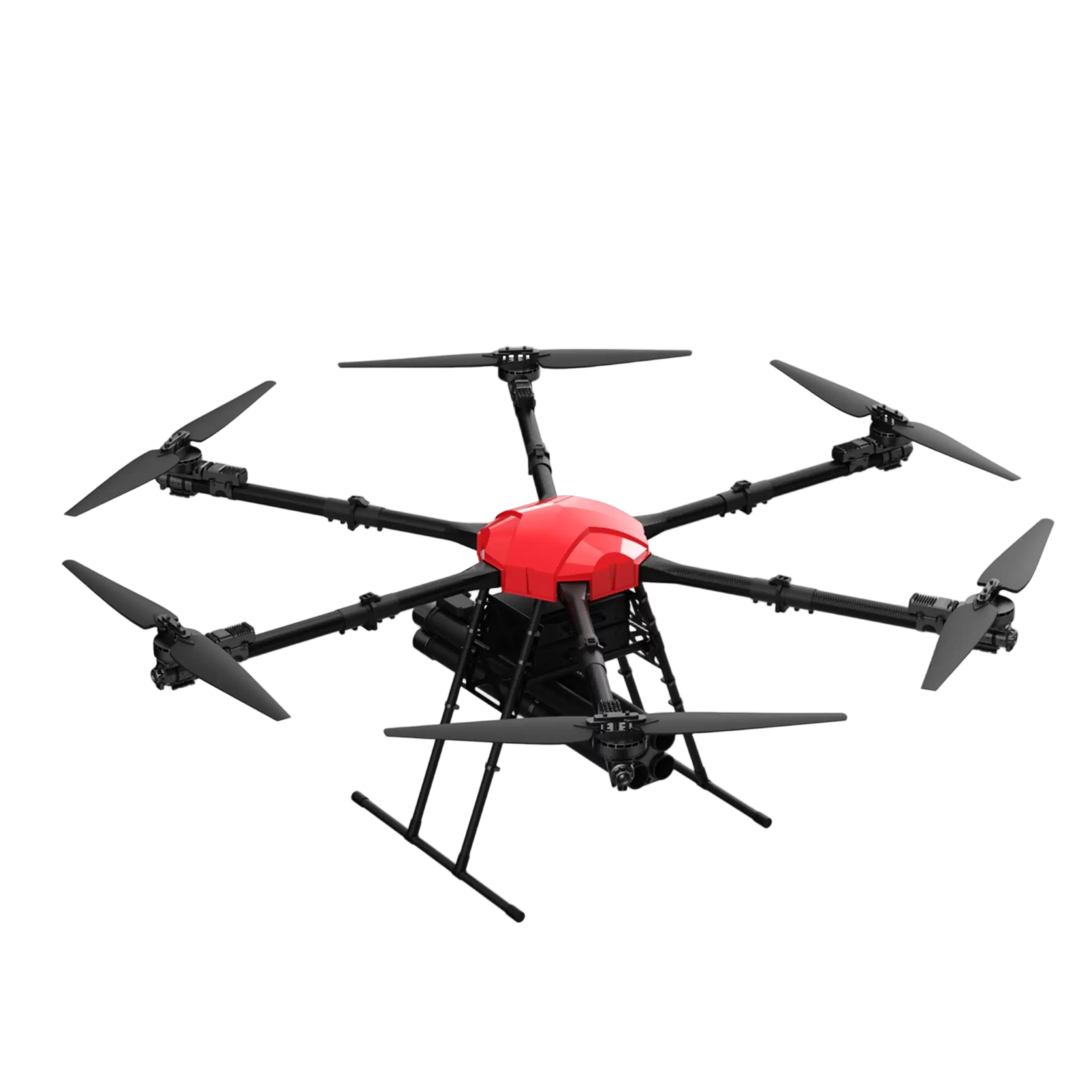

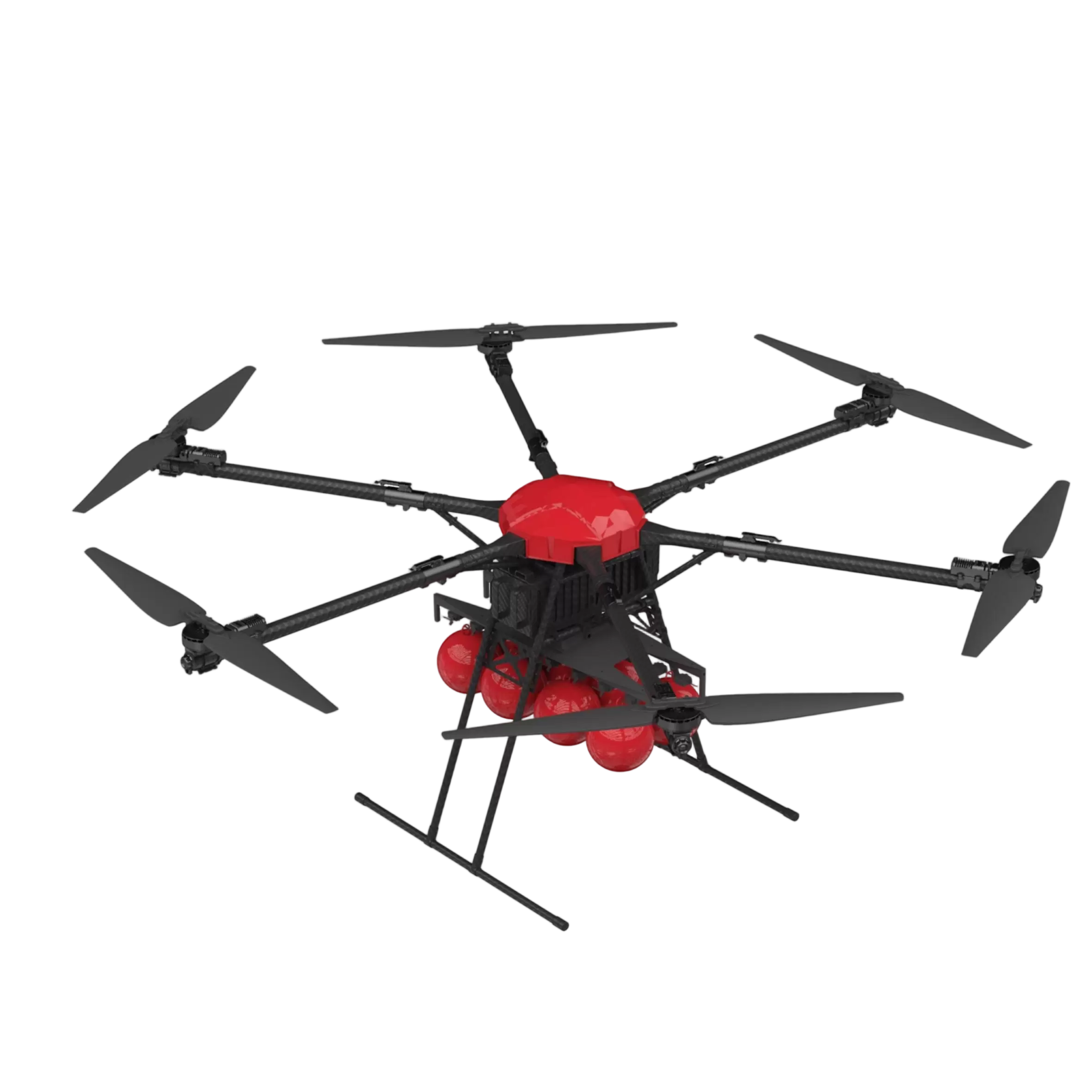

Model | H30 |
Material | Carbon Fiber + Aviation Aluminum Alloy |
Number of Rotors | 6 |
Wheelbase | ≤1930mm (±20mm) |
Unfolded Size | 2050×1800×810mm (±20mm) |
Folded Size | 1180×1030×810mm (±20mm) |
Empty Weight | ≤21KG (excluding battery) |
Maximum Payload | ≤30KG |
Maximum Takeoff Weight | ≤58KG |
Maximum Flight Speed | ≤18m/s |
Maximum Ascent Speed | ≤5m/s |
Maximum Descent Speed | ≤4m/s |
Maximum Takeoff Altitude | 4000m |
Endurance (No Load) | ≥55min |
Endurance (30kg Load) | ≥18min |
Positioning System | GPS (supports single Beidou mode) |
Power System | High-Efficiency FOC |
Propeller Size | 34-inch Folding |
Power Battery | 14S 30000mAh×2 |
Charger | Intelligent Super Fast Charging |
Remote Control | 7-inch Industrial Touch Screen + Optical Viewfinder |
Control Distance | 5-20KM (Ground-to-Air, Line-of-Sight) |
Protection Level | IP54 |
Max Wind Resistance | ≤Level 7 |
Operating Temperature | -20℃ to 50℃ |
*
*
