DR200-AB(c) Fixed Drone Detection, Jamming, and Spoofing Integrated Equipment
DR200-AB(c) Fixed Drone Detection, Jamming, and Spoofing Integrated Equipment
DR200-AB(c) Fixed Drone Detection, Jamming, and Spoofing Integrated Equipment
DR200-AB(c) Fixed Drone Detection, Jamming, and Spoofing Integrated Equipment

DR200-AB(c) Fixed Drone Detection, Jamming, and Spoofing Integrated Equipment

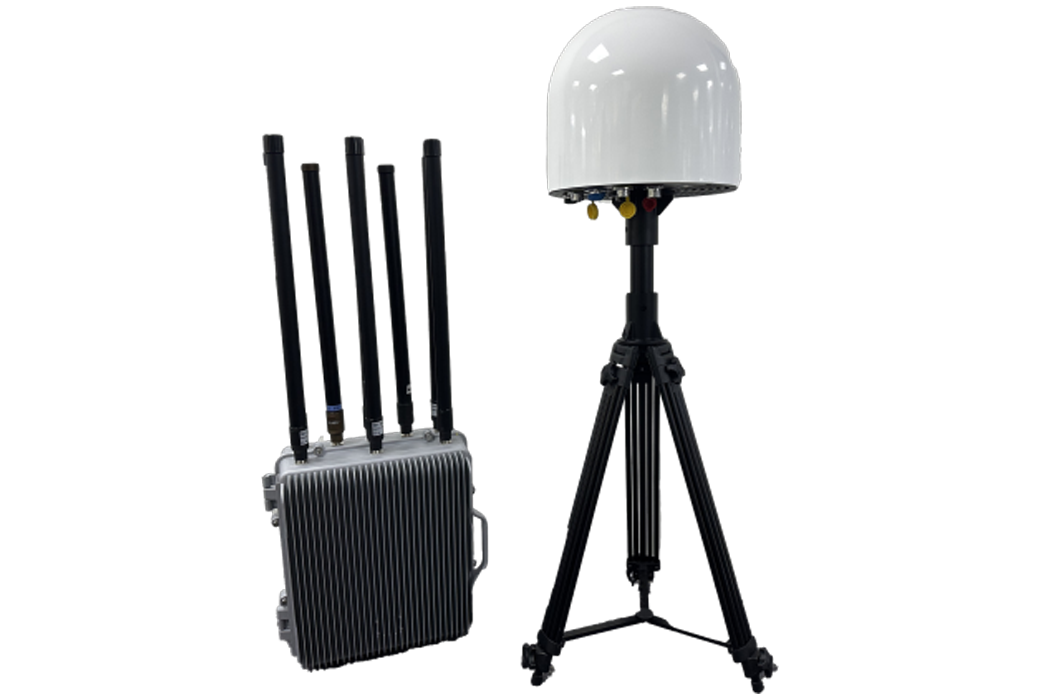

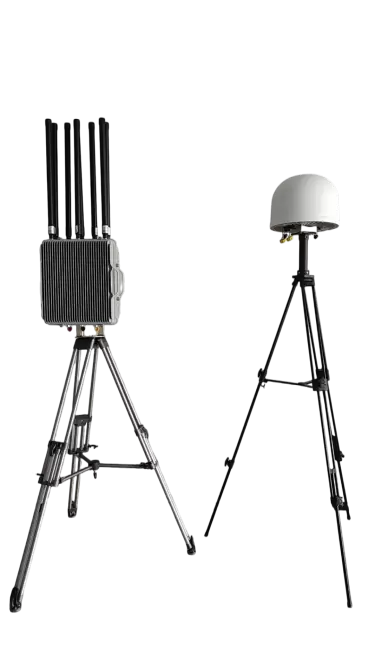

The device is based on multi-sensor fusion technology and integrates various techs such as radio detec- tion,protocol decoding,electromagnetic jamming,navigation spoofing, and networked supervision.  It combines scanning, detection, jamming, and spoofing into one unit, enabling linkage between one de- tection unit and multiple jamming units. This allows for the establishment of a comprehensive detection and defense system, meeting diverse low-altitude defense needs both domestically and internationally.

DR200-AB(c)

  • 360° Full Frequency Band Detection

  • FPV Video Transmission Detected and Captured

  • Super Interference to FPV Drones

  • Video Transmission Detected and Captured

Product Feature

  • Full Frequency Band Detection

  • FPV Video Transmission Signal Capture

  • Super Interference to FPV Drones

  • Highly Integrated

  • Military Quality

  • Strong Scalability

Product Parameters


Detection frequency band

70MHz-6GHz full-frequency scanning, detection and display

Key detection frequency band

800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz

Detection range

≥10km (depends on working conditions)

FPV Video transmission detection

500MHz-6GHz full-frequency scanning, detection and display

Video transmission detection range

≥1.5km (support viewing real-time video)

Azimuth range

Horizontal: 360°, Pitch: 90°

Jamming frequency band

700MHz-840MHz, 860MHz-930MHz, 1080MHz-1200MHz, 1200MHz-1340MHz, 1560MHz-1620MHz, 2385MHz~2490MHz, 5100MHz-5300MHz, 720MHz~5860MHz

Jamming distance

≥3km (depends on working conditions)

Spoofing radius

1~3km+ (depends on environment and drone model)

Spoofing signal

GPS, GLONASS, BD

Spoofing activated time

≤4s

Direction finding accuracy

≤±3RMS°

Operation temperature

-40°C~+60°C

Weight

Detection device: ≤15kg

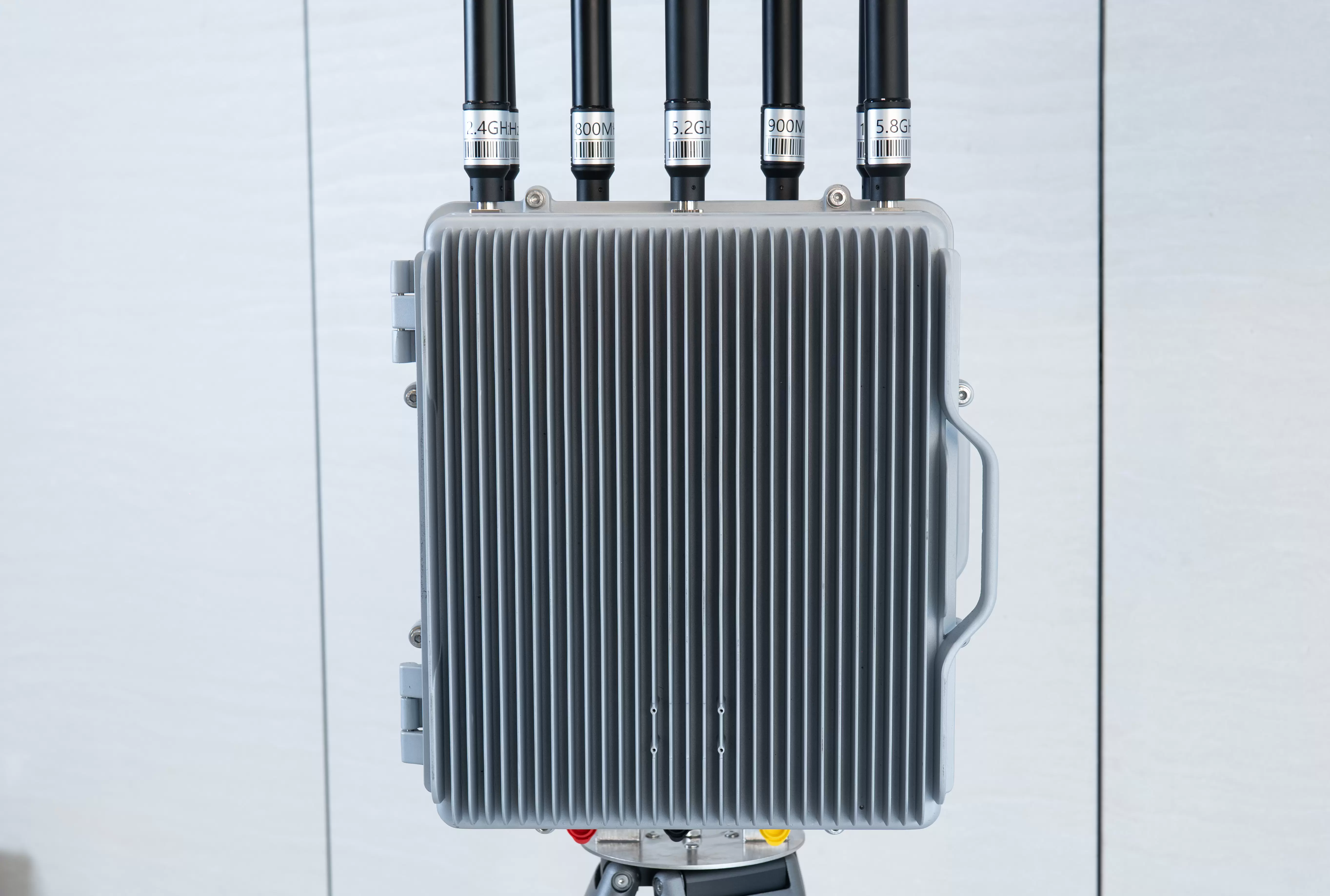

Jamming device: ≤35kg

Size

Detection device: 400mm370mm (diameterheight)
Jamming device: 465mm275mm510mm (lengthwidthheight)
