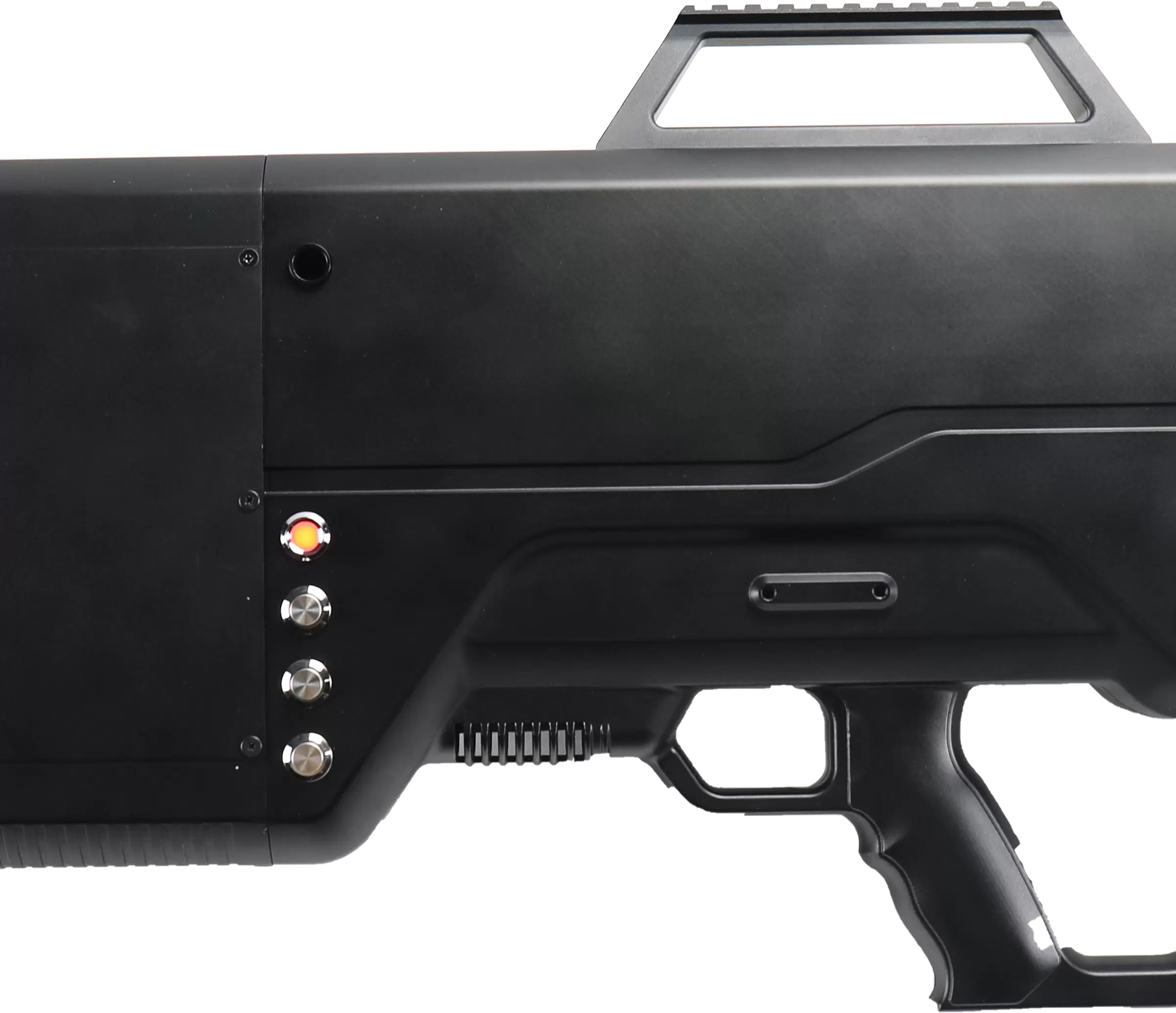

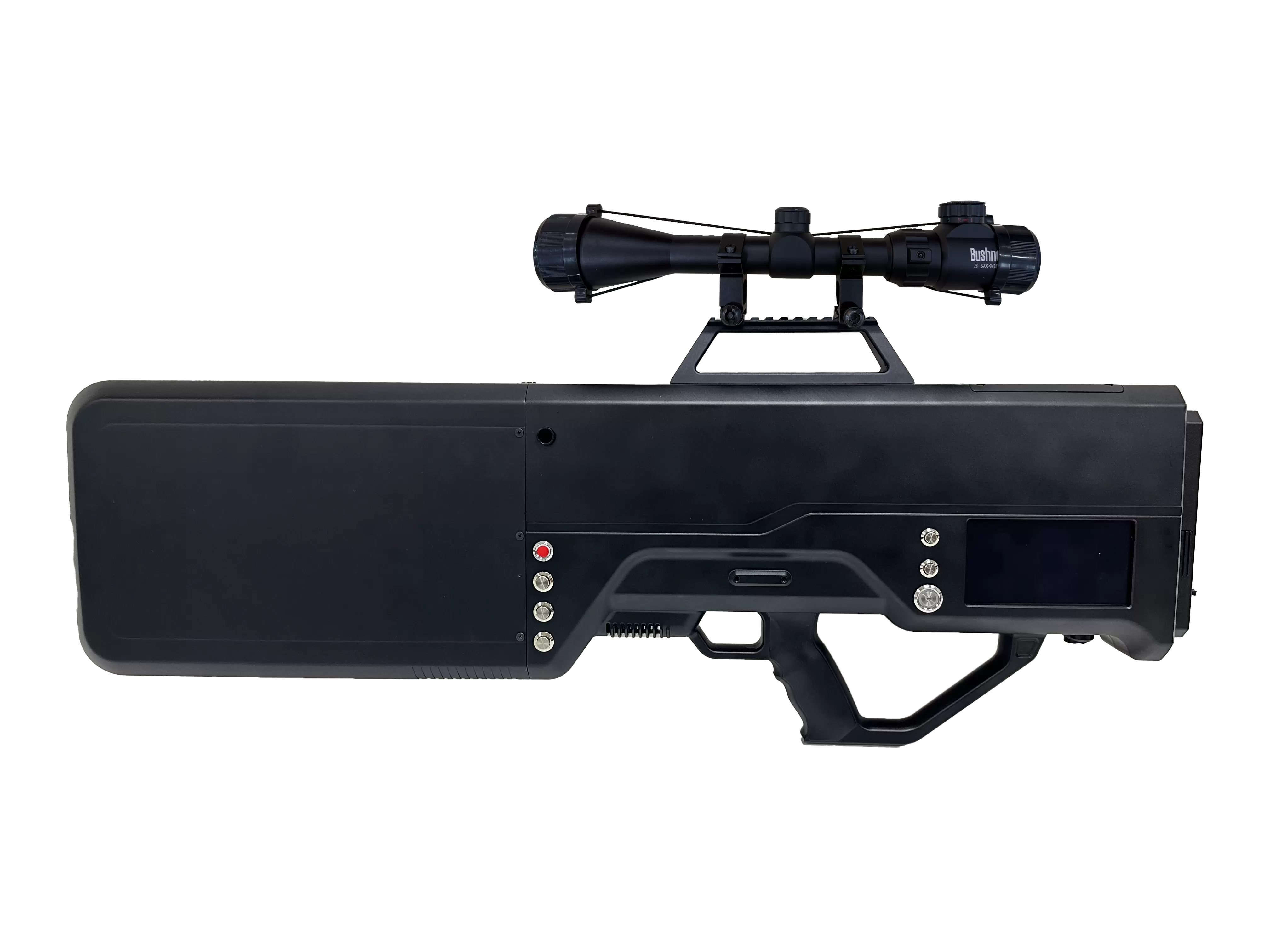

The device integrates technological innovation and humanized structural design.Through radio frequency scanning feature recognition and decoding, the device can comprehensi- vely detect illegally intruding small, low, and slow drones, and through efficient jamming, it can achieve interference of drone remote control, image transmission and navigation signals, forcing the drone to return or land.
2km Long-distance Strike
1V1 Customized Services
Super Interference to FPV Drones
1+N Collaborative Linkage
400MHz-6GHz Key Frequency Band Detection
Full Frequency Band Detection
Precise and Efficient Jamming
Super Interference to FPV Drones
Integrated Design
Military Quality
Customized Services
Strong Scalability
Detection frequency band | 400MHz-1500MHz,2200MHz-2500MHz,5100MHz-5900MHz |
Detection range | ≥2km (depends on working conditions) |
Jamming frequency band | 800MHz,900MHz,1.2GHz,1.4GHz,1.5GHz,2.4GHz,5.2GHz,5.8GHz |
Jamming distance | ≥2km (depends on working conditions) |
Battery life | ≥24h |
Operation temperature | -40℃~+60℃ |
Network & positioning | Support device positioning |
Alarm mode | Alarm with sound and indicator light |
Usage | Fixed, handheld, etc. |
Battery | Two built-in low temperature resistant lithium batteries |
Weight | ≤6.5kg (including the battery) |
Size | 770mm110mm305mm (lengthwidthheight) |
Language | Chinese, English, Other language customizable |
*
*
