The equipment uses radio spectrum sensing technology, integrating detection and jamming. It can realize 360° all-round detection and jamming of unauthorized drones and force them to return or make an emergency landing. It has the characteristics of strong mobility, wide coverage, and re- al-time response.
360° Full Frequency Band Detection and jamming
3 Convertible Usages
3km Long-distance Jamming
FPV Video Transmission Detected and Captured

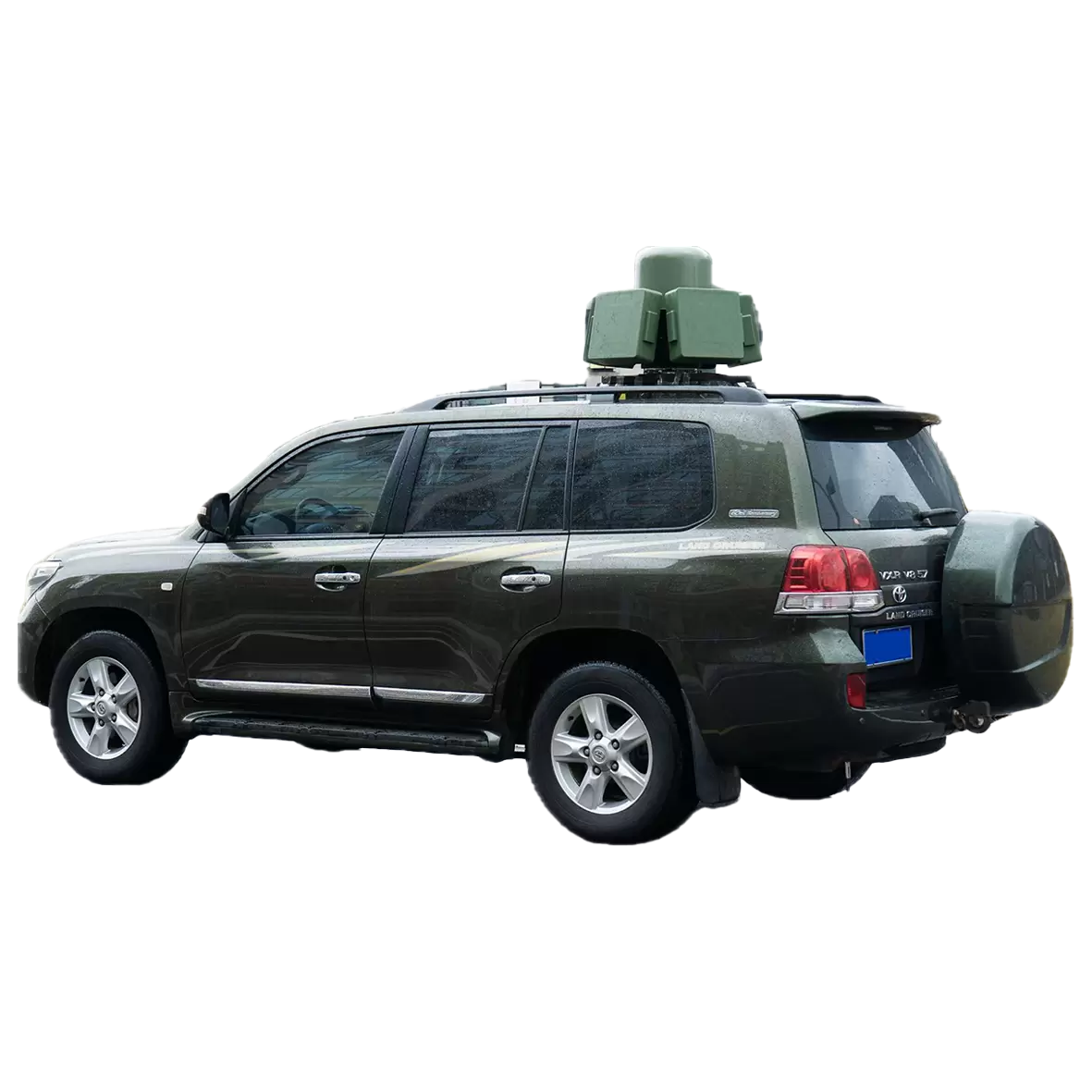

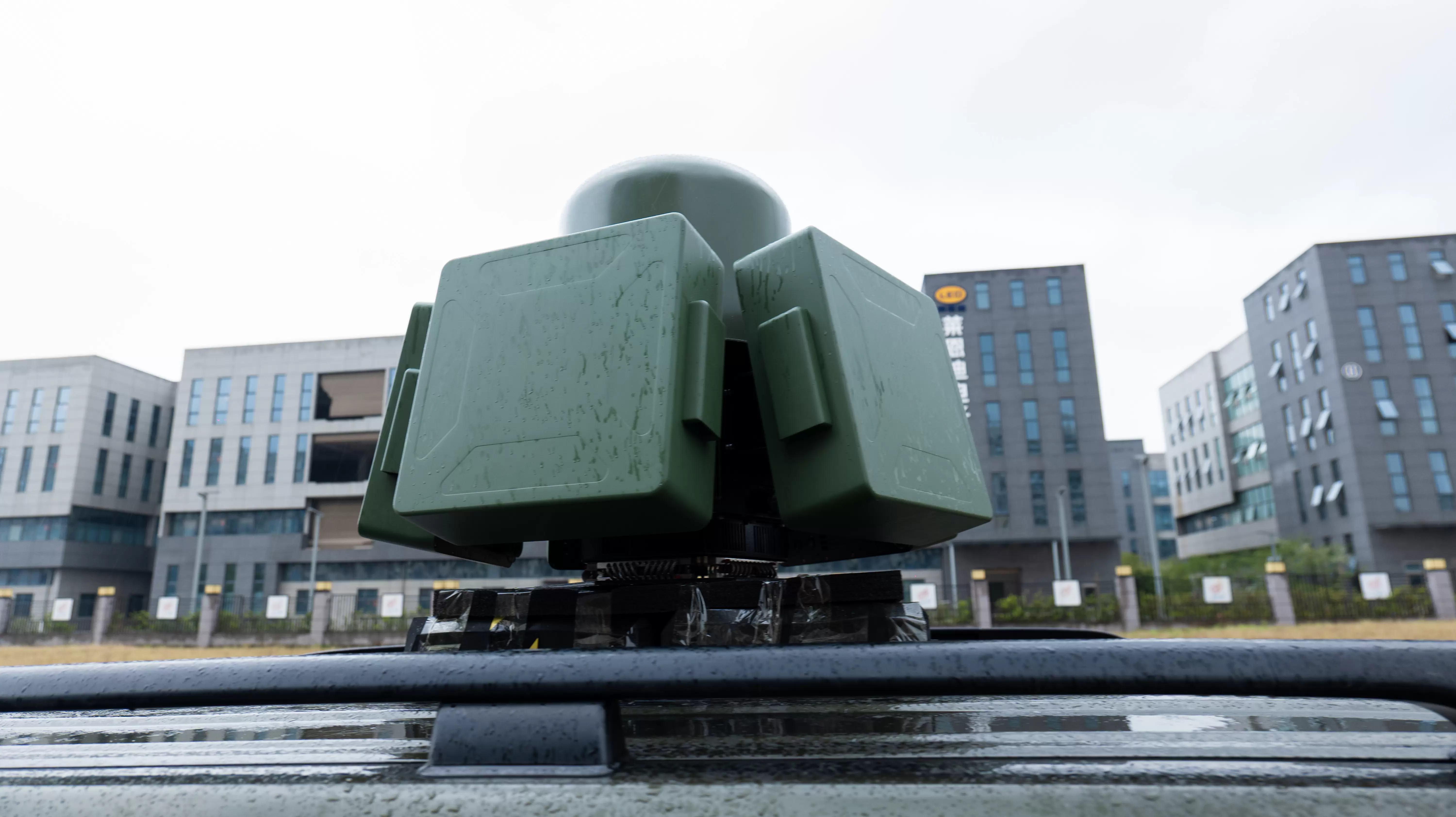

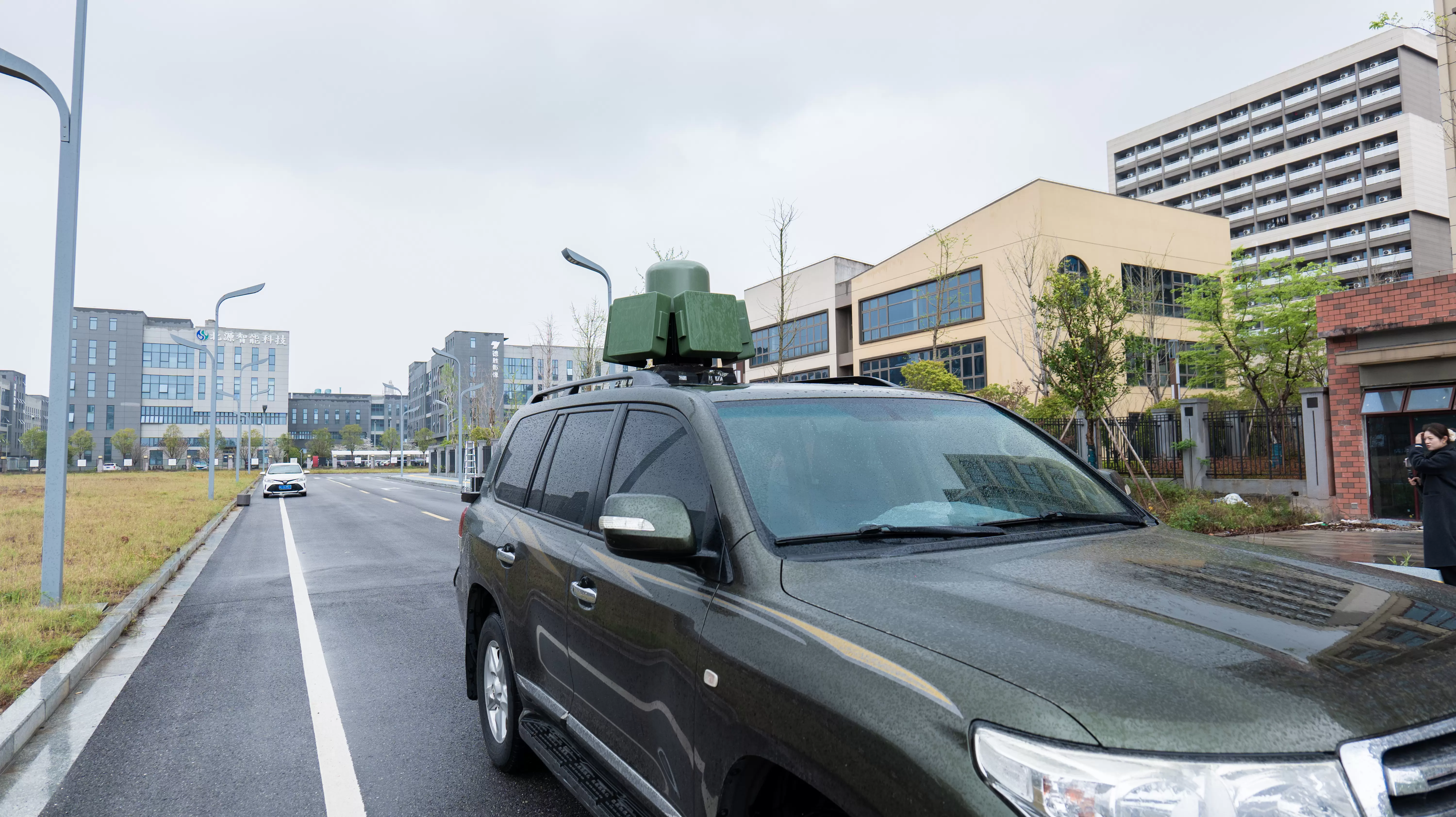

Flexible Deployment on Various Types of Vehicles
360° Full Frequency Band Detection and jamming
Strong Stability
Strong Scalability
Module Designed
FPV Video Capture
Detection frequency band | 300MHz-6GHz full-frequency scanning, detection and display |
Detection range | ≥5km(depends on working conditions) |
FPV Video transmission detection | 500MHz-6GHz full-frequency scanning and display |
Video transmission detection range | ≥1.5km(supports viewing real-time video) |
Detection height | 0~1200m |
Jamming frequency band | 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
Jamming distance | ≥3km(depends on working conditions) |
Jamming range | horizontal:360° pitch:-90°~+90° |
Working time | ≥24h |
Operation temperature | (-20°C~+60°C)±2°C |
Weight | 64.25kg |
Size | 800mm600mm(diameterheight) |
*
*
