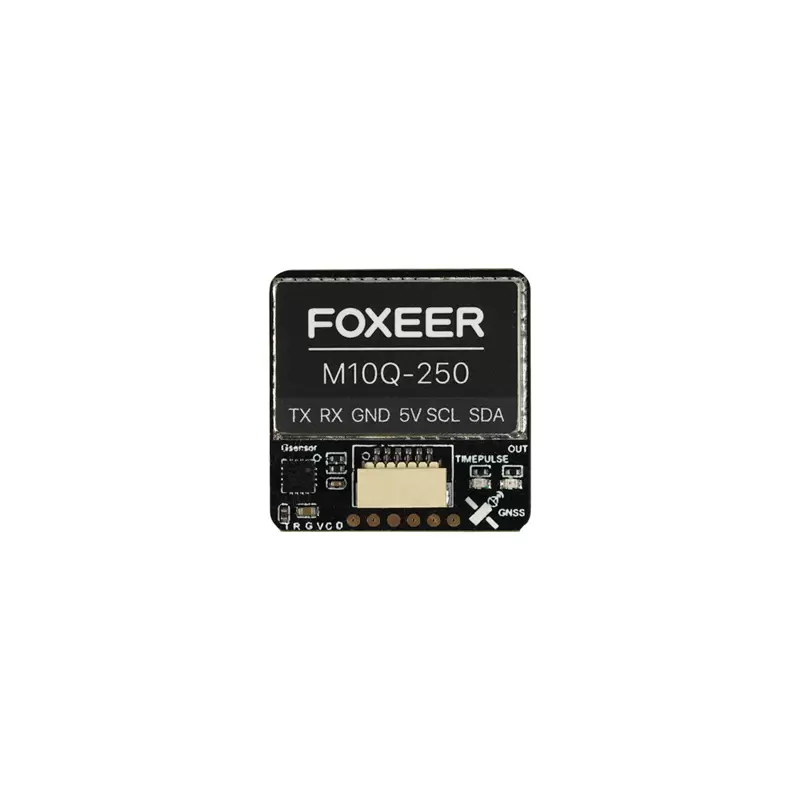

Foxeer M10Q 250 GPS

Foxeer M10Q 250 GPS

Foxeer M10Q 250 GPS

The Foxeer M10Q 250 GPS is a high-performance navigation module for RC aircraft and FPV drones. It supports multi-constellations (GPS L1/GLONASS L1/BDS B1/Galileo E) for 1.5m outdoor positioning accuracy, features a high-sensitivity ceramic antenna (-166dBm trace sensitivity) for stable signals, and works with dual NMEA/UBX protocols for easy system integration. With a compact size, lightweight design (~2.7g), and -40°C to +85°C operating range, it fits tight installs and handles harsh conditions

+8618807085401 Contact Sales Team

Foxeer M10Q 250 GPS

1.5m Outdoor Accuracy
-166dBm Sensitivity
Dual NMEA/UBX Protocol
~2.7g Compact Build

Product Feature

Precise Multi-Constellation Positioning
Reliable Signal Reception
Broad System Compatibility
Tough & Compact Design

Product Parameters

Parameter Type	Specifications
Core Chip & Positioning	- Chipset: M10 (10th-generation) - Outdoor Positioning Accuracy: 1.5m - Speed Accuracy: 0.05 m/s
Satellite Constellations	GPS L1, GLONASS L1, BDS B1, Galileo E, SBAS L1, QZSS L1
Signal & Protocol	- Antenna: High-performance ceramic - Trace Sensitivity: -166 dBm - Protocols: NMEA / UBX - Update Rate: 1Hz - 10Hz (default 10Hz)
Electrical Specs	- Input Voltage: 5V DC - Baud Rate: 115200 bps
Physical & Environmental	- Weight: ~2.7g - Dimension: 12.5 × 17 × 5 mm - Operating Temp.: -40°C to +85°C - Storage Temp.: -40°C to +105°C
Dynamic Limits	- Max Altitude: 50,000m - Max Speed: 500 m/s - Max Acceleration: 4g
