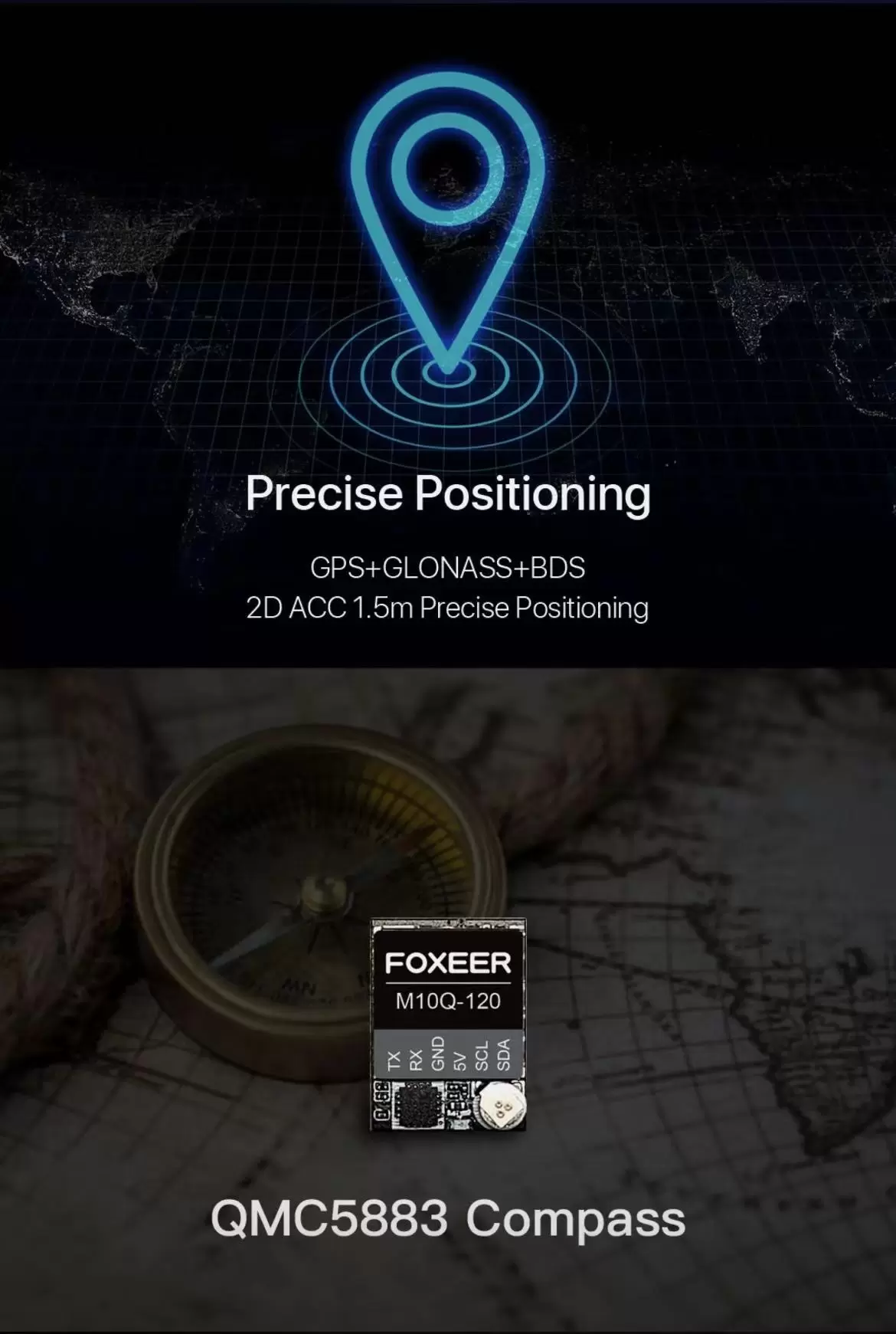

The Foxeer M10Q 180 GPS is a compact, high-performance module for RC aircraft and FPV drones. It supports multi-constellations (GPS L1/GLONASS L1/BDS B1/Galileo E) for 1.5m outdoor positioning accuracy, features a high-sensitivity ceramic antenna (-166dBm trace sensitivity) for stable signals, and works with dual NMEA/UBX protocols for easy integration. Weighing ~2.7g and sized compactly, it fits tight installation spaces, with a wide -40°C to +85°C operating range for harsh conditions.
1.5m Outdoor Accuracy
Dual NMEA/UBX Protocols
Precise Multi-Constellation Positioning
Strong Signal Reception.
Wide System Compatibility
Space-Saving Design
| Parameter Category | Details |
| Core Performance | - Chipset: M10 (10th-gen) |
| - Positioning Accuracy (Outdoor): 1.5m | |
| - Speed Accuracy: 0.05 m/s | |
| Satellite Support | GPS L1, GLONASS L1, BDS B1, Galileo E, SBAS L1, QZSS L1 |
| Signal & Protocol | - Antenna: High-performance ceramic |
| - Trace Sensitivity: -166 dBm | |
| - Supported Protocols: NMEA / UBX | |
| - Update Rate: 1Hz - 10Hz (default 10Hz) | |
| Electrical & Physical specs | - Input Voltage: 5V |
| - Baud Rate: 115200 bps | |
| - Weight: ~2.7g | |
| - Dimension: 12.5 × 17 × 5 mm | |
| Environmental Adaptability | - Operating Temp.: -40°C to +85°C |
| - Storage Temp.: -40°C to +105°C | |
| - Max Altitude: 50,000m | |
| - Max Speed: 500 m/s |
*
*
