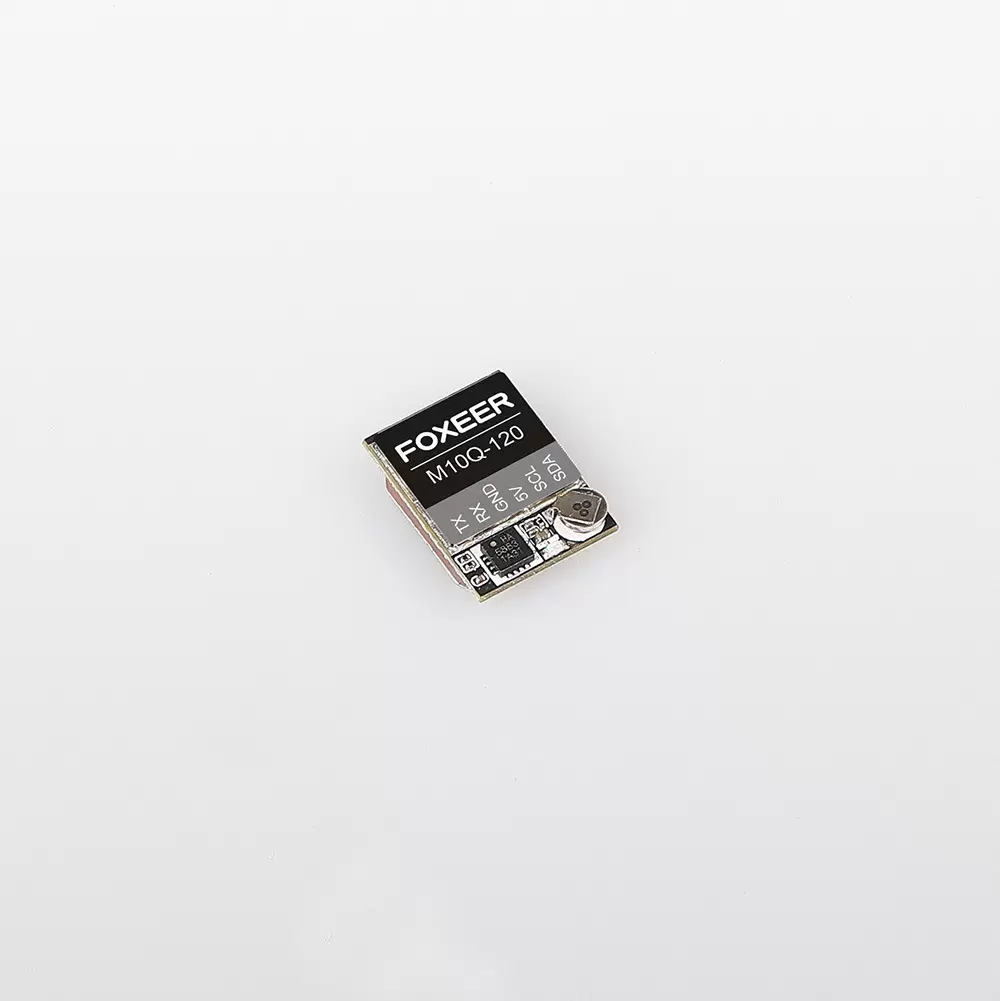

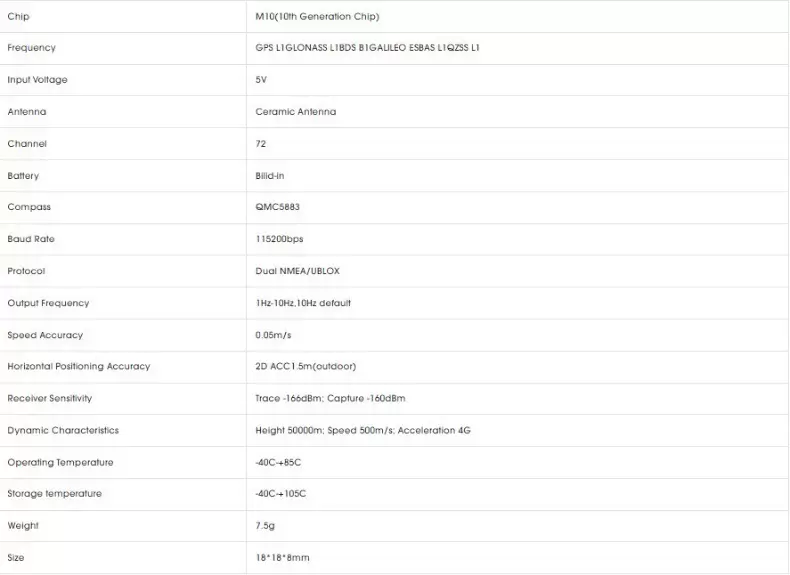

The Foxeer M10Q 120 GPS is a high-performance navigation module specifically designed for RC airplanes and FPV drones, featuring an advanced 10th-generation (M10) chip that delivers precise and reliable navigation; it supports multiple constellations including GPS L1, GLONASS L1, BDS B1, Galileo E, SBAS L1, and QZSS L1 for wide-range accurate positioning, comes with a built-in QMC5883 compass to provide accurate directional data (ensuring stable flight even in challenging magnetic environments) and a high-performance ceramic antenna (with -166 dBm trace sensitivity and -160 dBm capture sensitivity) for enhanced signal acquisition and stability, while also offering dual NMEA/UBX protocol support for easy integration with various systems and configurable output frequency from 1Hz to 10Hz (default 10Hz) to meet different needs; in terms of specifications, it has an input voltage of 5V, baud rate of 115200 bps, speed accuracy of 0.05 m/s, horizontal positioning accuracy of 1.5 m (outdoor), dynamic characteristics including a maximum height of 50000 m, maximum speed of 500 m/s, and maximum acceleration of 4g, operating temperature range of -40°C to +85°C, storage temperature range of -40°C to +105°C, weighs only 2.7 g, and measures 12.5 * 17 * 5 mm, with the package including 1x M10Q 120 GPS module and 1x set of cables.
*
*
