Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
20KG
Maximum payload
18m/s
Never Exceed Speed
3000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight: 13000g (depending on custom strength).
Maximum take-off weight: 42 kg.
Parameter | Specification |
|---|---|

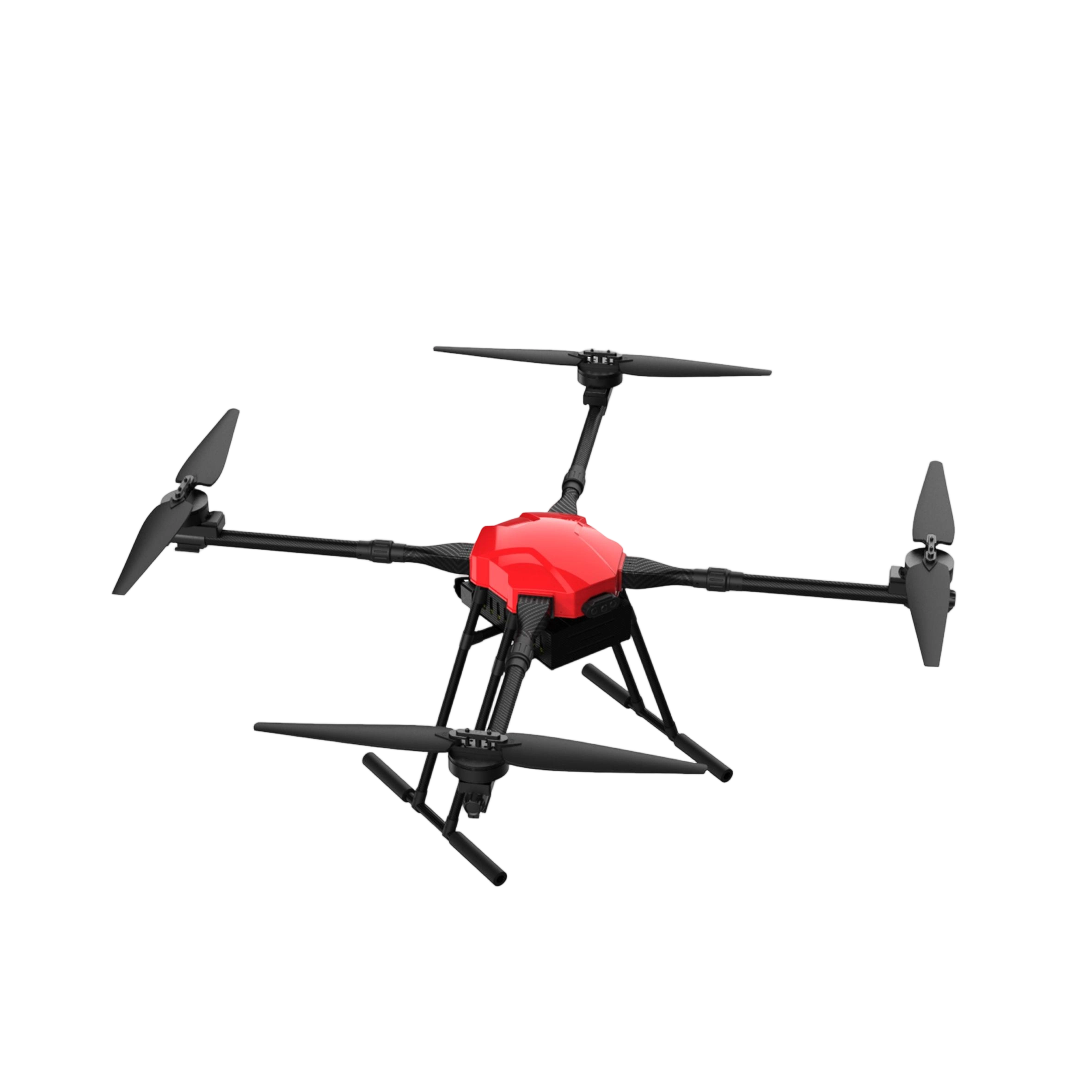

Model | H20 |
Material | Carbon Fiber + Aviation Aluminum Alloy |
Number of Rotors | 4 |
Wheelbase | ≤1560mm (±20mm) |
Unfolded Size | 1250×1250×710mm (±20mm) |
Folded Size | 850×850×710mm (±20mm) |
Empty Weight | ≤13KG (excluding battery) |
Maximum Payload | ≤20KG |
Maximum Takeoff Weight | ≤42KG |
Maximum Flight Speed | ≤18m/s |
Maximum Ascent Speed | ≤5m/s |
Maximum Descent Speed | ≤4m/s |
Maximum Takeoff Altitude | 3000m |
Endurance (No Load) | ≥35min |
Positioning System | GPS |
Power System | High-Efficiency FOC |
Propeller Size | 34-inch Folding |
Power Battery | 16S 28000mAh×1 |
Charger | Intelligent Super Fast Charging |
Remote Control | 5.5" Integrated Display (1920×1080) |
Remote Standby Time | 3-5 hours |
Transmission Distance | 5km (Upgradable) |
Max Wind Resistance | ≤Level 6 |
Operating Temperature | -20℃ to 50℃ |
Protection Level | IP54 |
*
*
