Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
100KG
Maximum payload
15m/s
Never Exceed Speed
4000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight: 55000g (depending on custom strength).
Maximum take-off weight: 210 kg.
Parameter | Specification |
|---|---|

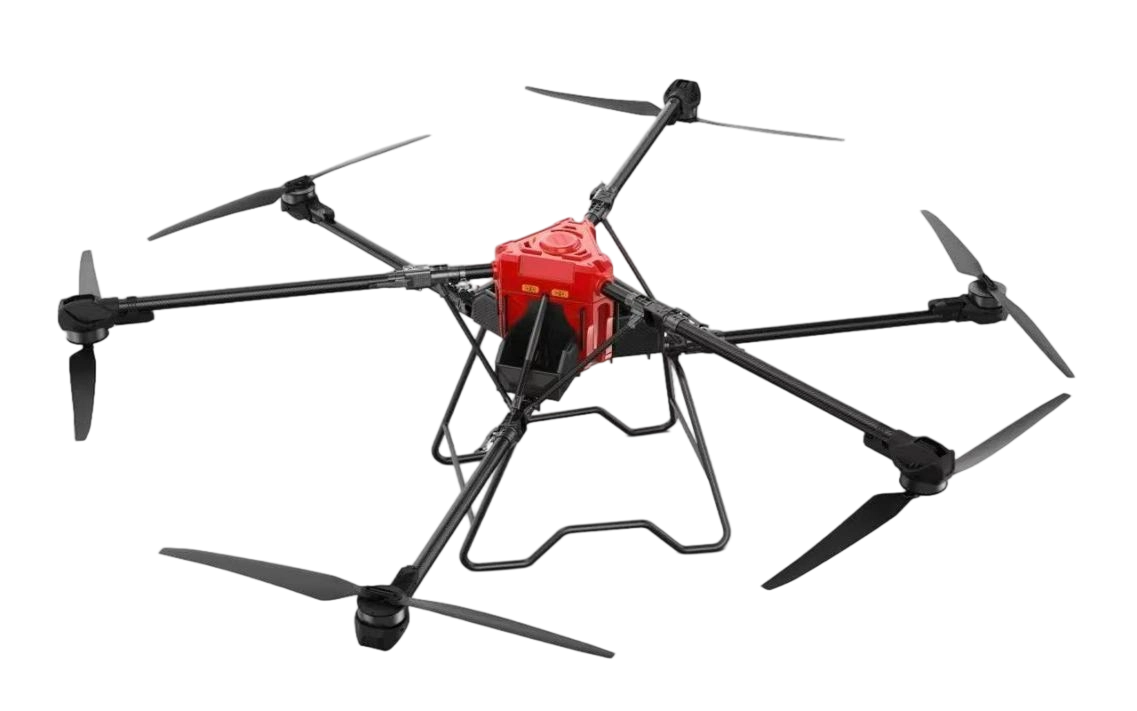

Model | TH100 |
Material | Carbon Fiber + Aviation Aluminum Alloy |
Number of Rotors | 6 Rotors |
Wheelbase | ≤3450mm (±20mm) |
Unfolded Size | 3550×3090×1260mm (±20mm) |
Folded Size | 1600×1460×1260mm (±20mm) |
Empty Weight | ≤55KG (excluding battery weight) |
Maximum Payload | ≤100KG |
Maximum Takeoff Weight | ≤210KG |
Maximum Flight Speed | ≤15m/s |
Maximum Ascent Speed | ≤5m/s |
Maximum Descent Speed | ≤4m/s |
Maximum Takeoff Altitude | 4000m |
Endurance | 80min (No Load) |
Positioning System | GPS+RTK Positioning |
Power System | High-Efficiency FOC Power |
Propeller Size | 63-inch Carbon Fiber Folding Propellers |
Power Battery | 18S 36000mAh×6 |
Charger | Intelligent Super Fast Charging |
Remote Control | 7-inch Industrial Touch Screen + Optical View Screen |
Control Distance | 5-20KM (Ground-to-Air, Line-of-Sight) |
Protection Level | IP54 |
Max Wind Resistance | ≤Level 7 |
Operating Temperature | -20℃ to 50℃ |
*
*
