Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
50KG
Maximum payload
15m/s
Never Exceed Speed
4000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight:33500g (depending on custom strength).
Maximum take-off weight: 115 kg.
Parameter | Specification |
|---|---|

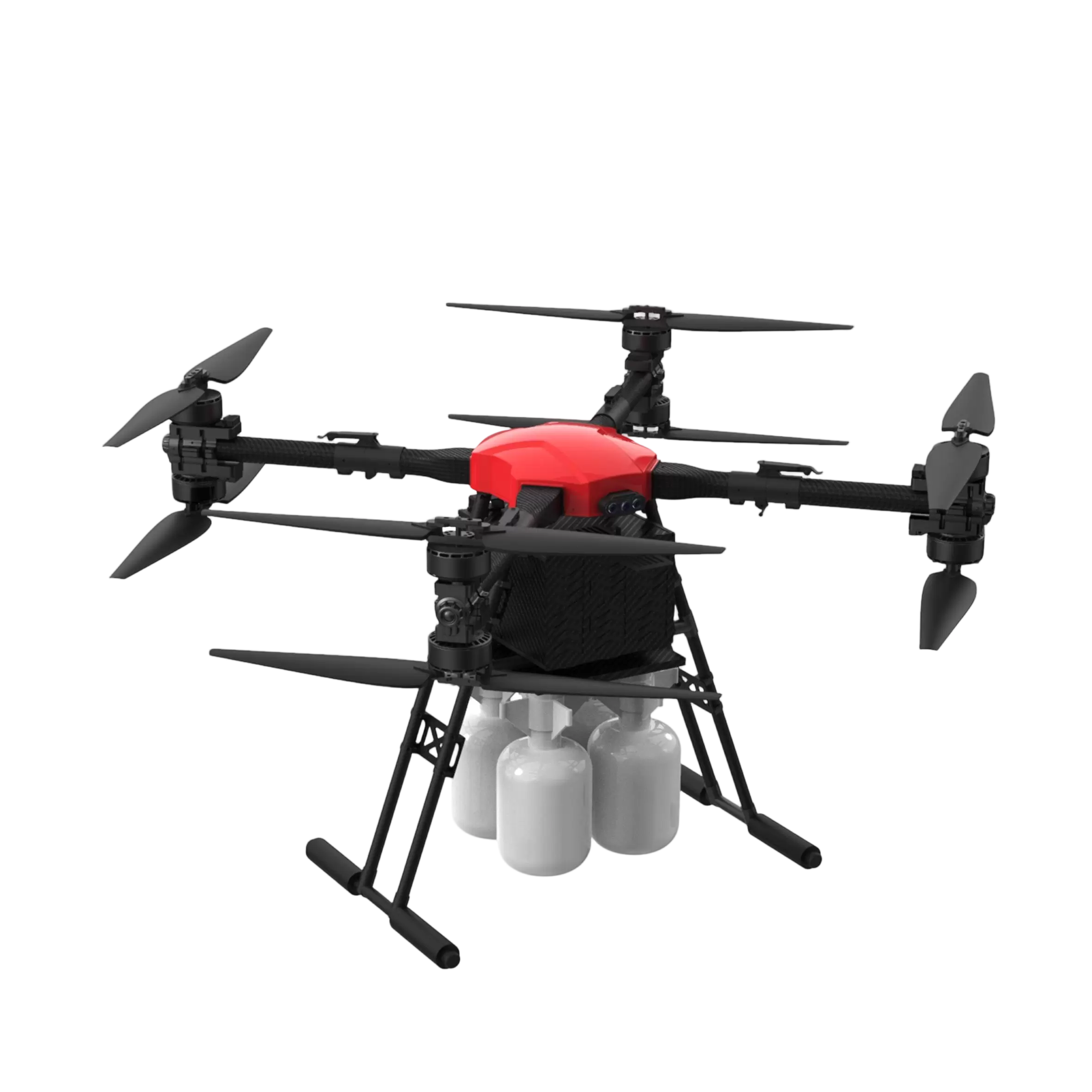

Model | H50-1 |
Material | Carbon Fiber + Aviation Aluminum Alloy |
Number of Rotors | 4-axis 8-propeller |
Wheelbase | ≤1850mm (±20mm) |
Unfolded Size | 1500×1500×1000mm (±20mm) |
Folded Size | 1000×1000×1000mm (±20mm) |
Empty Weight | ≤33.5KG (excluding battery) |
Total Weight with Battery | ≤66KG (without any modification) |
Maximum Payload | ≤50KG |
Maximum Takeoff Weight | ≤115KG |
Maximum Flight Speed | ≤15m/s |
Maximum Ascent Speed | ≤5m/s |
Maximum Descent Speed | ≤4m/s |
Maximum Takeoff Altitude | 4000m |
Endurance (No Load) | ≥69min |
Endurance (50kg Load) | ≥27min |
Positioning System | GPS+RTK (supports single Beidou mode) |
Power System | High-Efficiency FOC |
Propeller Size | 48-inch Folding Propeller |
Power Battery | 14S 37000mAh×4 |
Charger | Intelligent Super Fast Charging |
Remote Control | 7-inch Industrial Touch Screen + Optical View Screen |
Control Distance | 5-20KM (Ground-to-Air, Line-of-Sight) |
Protection Level | IP54 |
Max Wind Resistance | ≤Level 7 |
Operating Temperature | -20℃ to 50℃ |
*
*
