Home / Products / Drone Platform / FPV Drone / ZTK-7 FPV 7-inch FPV Drone with AI Guidance and Fiber Optic Transmission
Body material: carbon fiber

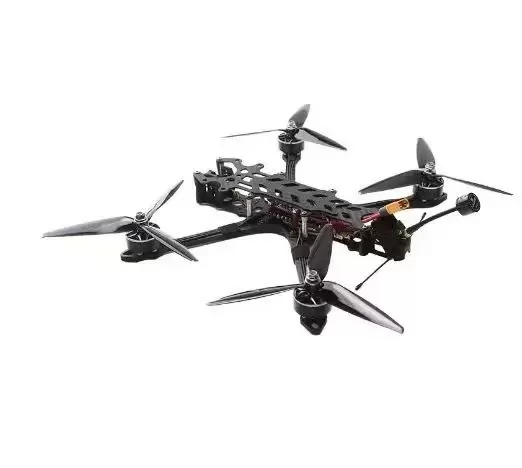

ZTK-7 FPV 7-inch FPV Drone
2KG
Maximum payload
160KM/H
Never Exceed Speed
0°
Arm mounting angle
Body material: High-strength carbon fiber
Structure weight: 540g (depending on custom strength).
Maximum take-off weight: 3.5kg.
SPEC：
| Frame | 7imch Frame Mark4 |
| Frame type | X Type |
| FC | F405 V3 |
| ESC: | 55A ESC4IN1 2-6S |
| VTX | 5.8G 3W（Optional) |
| Antenna | 5.8G 151mm 3.5dBi |
| Camera | 1500TVL 165° wideAngle（optional) |
| Motors | 2812 900KV Motors |
| Props | 7040*3 |
| Receiver | ELRS915 |
| DroneWeight | 540g |
| Maximumflight speed | 160km/h |
| Rated load | 1.5kg |
| Maximumload | 2kg |
| Maximum take-offweight | 3.5kg |
| Recommendedbattery | 6S4500mAhXT60plug |
| Flight time | Ratedload about7minutes@4500mAh |
Ratedloadabout12minutes@8500mAh |
*
*
