Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
10KG
Maximum payload
20m/s
Never Exceed Speed
5000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight: 8000g (depending on custom strength).
Maximum take-off weight: 10 kg.
Parameter | Specification |
|---|---|

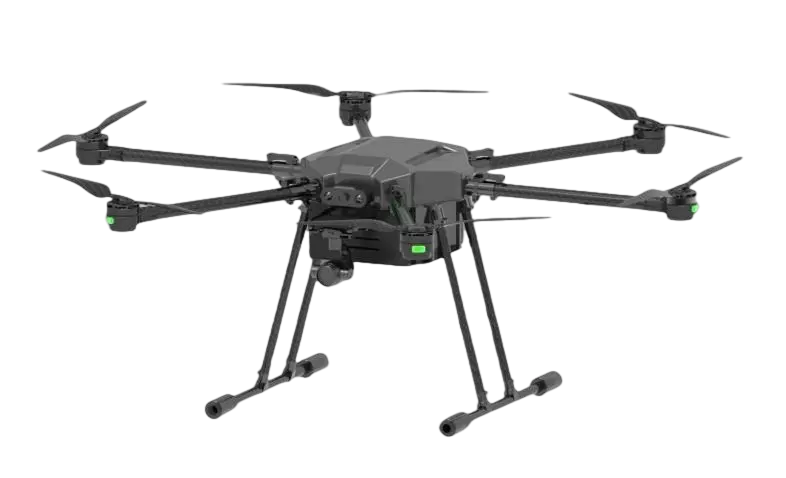

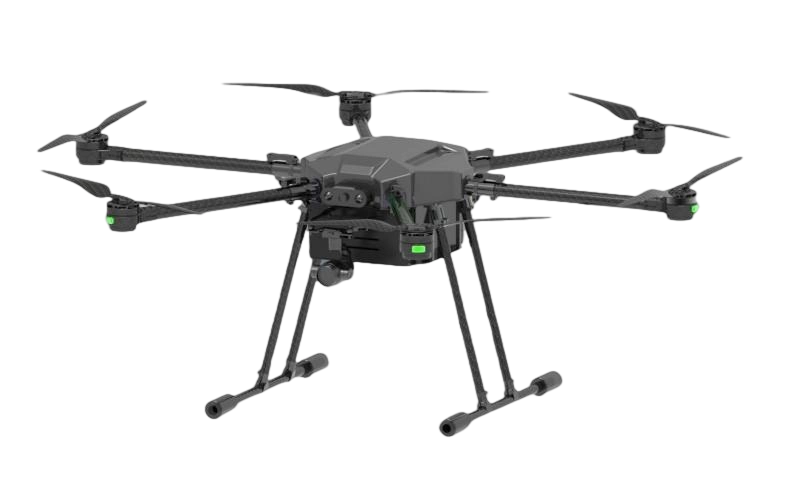

Model | H10 |
Unfolded Size | 1300mm×1300mm×700mm (±20mm) |
Folded Size | 600mm×600mm×700mm (±20mm) |
Material | Aviation Aluminum Alloy, Carbon Fiber |
Empty Weight | 8KG (excluding battery) |
Maximum Payload | 10kg |
Maximum Ascent Speed | 5m/s |
Maximum Descent Speed | 5m/s |
Max Wind Resistance | Level 6 |
Maximum Takeoff Altitude | 5000m |
Maximum Flight Speed | 20m/s (no wind) |
Endurance (No Load) | 60 minutes |
Maximum Control Distance | 10km (open area, no interference) |
Maximum Flight Height | 1000m |
Hover Accuracy Vertical | ±0.5m (with GPS) |
Hover Accuracy Horizontal | ±1m (with GPS) |
Positioning System | GPS |
Power System | Integrated FOC Power System |
Operating Temperature | -20℃ to 60℃ |
Waterproof Rating | IP54 |
Battery Capacity | Intelligent Battery 4S 36000mAh |
*
*
