Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage
Mission module location: inside the airframe
5KG
Maximum payload
18m/s
Never Exceed Speed
3000m
Maximum level flight altitude
0°
Arm mounting angle
Body material: carbon fiber, aviation aluminum alloy, injection molded parts, etc.
Landing gear mounting position: under the fuselage.
Mission module location: inside the airframe.
Structure weight: 3000g (depending on custom strength).
Maximum take-off weight: 11 kg.

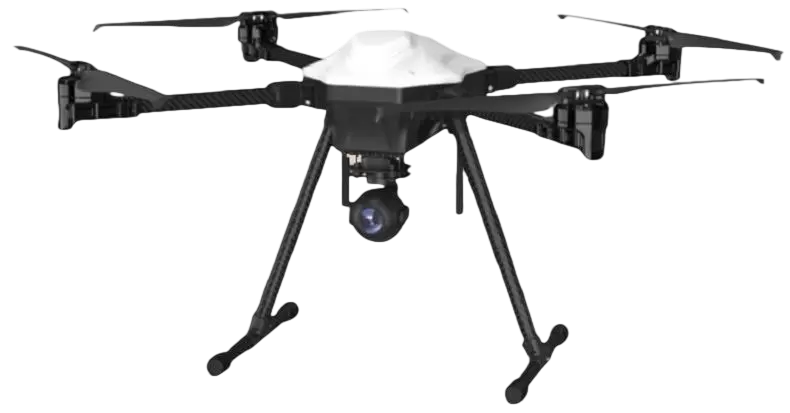

Parameter | Specification |
|---|---|
Model | H5 |
Material | Carbon Fiber + Aviation Aluminum Alloy |
Number of Rotors | 4 |
Wheelbase | ≤900mm (±20mm) |
Unfolded Size (mm) | 720×720×470 (±20mm) |
Folded Size (mm) | 440×350×470 (±20mm) |
Empty Weight | ≤3KG (excluding battery) |
Maximum Payload | ≤5KG |
Maximum Takeoff Weight | ≤11KG |
Maximum Flight Speed | ≤18m/s |
Maximum Ascent Speed | ≤5m/s |
Maximum Descent Speed | ≤4m/s |
Maximum Takeoff Altitude | 3000m |
Endurance (No Load) | ≥72min |
Endurance (With Load) | 30min (5kg), 38min (3kg) |
Positioning System | GPS |
Power System | High-Efficiency FOC |
Propeller Size | 22-inch Folding |
Battery | 6S 30000mAh×1 |
Charger | Intelligent Super Fast Charging |
Remote Control | 5.5" Integrated Display (1920×1080) |
Remote Standby Time | 3-5 hours |
Transmission Distance | 5km (Upgradable) |
Max Wind Resistance | ≤Level 6 |
Operating Temperature | -20℃ to 50℃ |
Protection Level | IP54 |
*
*
