Designed for professional aerial surveying and mapping exploration with equal endurance, 6s ~ 12V.
Unique Motor Core Design, 24N28P multi-slot multi-stage.
The use of aviation aluminum, higher strength, to provide you with better security guarantees.
14
Polar logarithm
180 °C
Enamelled wire grade
150 °C
Magnet class
500V
Coil voltage
Designed for professional aerial surveying and mapping exploration with equal endurance, 6s ~ 12V.

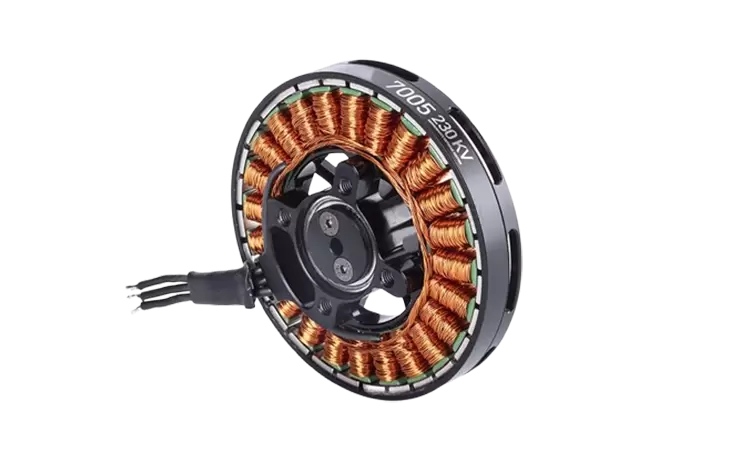

Unique Motor Core Design, 24N28P multi-slot multi-stage.
The use of aviation aluminum, higher strength, to provide you with better security guarantees.
Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency.
The use of durable high-quality imported bearings, more stable rotation, more resistant to fall.
Using high-performance high-temperature arc-shaped magnetic disc, the performance is improved by 5% .

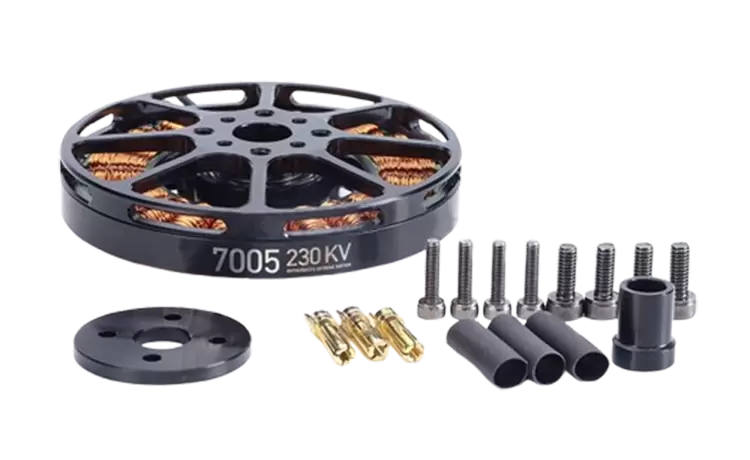

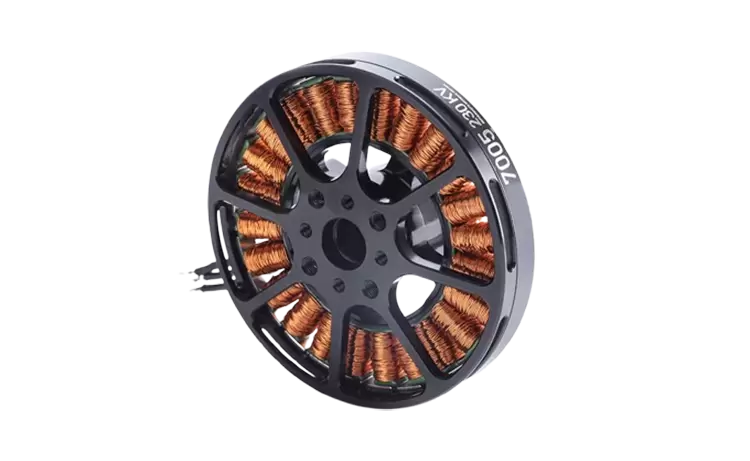

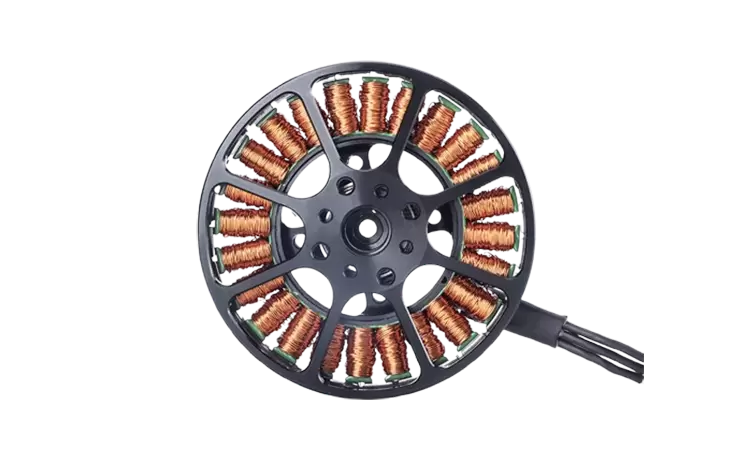

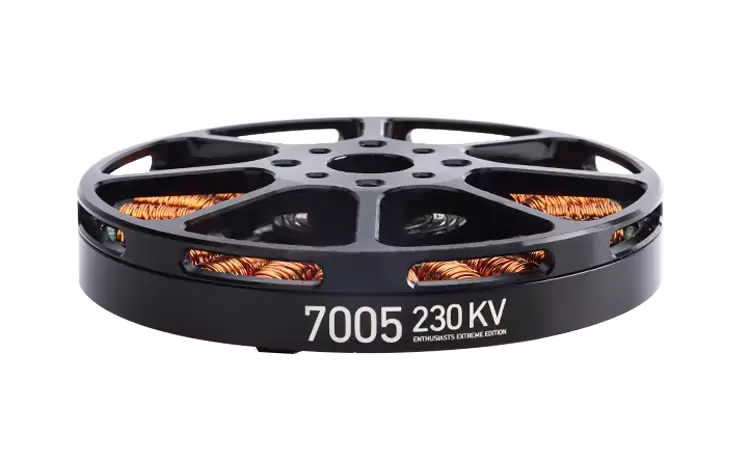

Motor model: 7005EEE V1.0 | Polar logarithm: 14 |
Stator core: imported material/surface antirust treatment | Enamelled wire grade: 180 °C |
Motor Size: D: 79 × 21.8 mm | Magnet class: 150 °C |
Protection Class: rainproof | Outlet specification: 80 mm (straight outlet) |
Centrifugal heat dissipation design: independent heat dissipation | Rotor dynamic balancing: ≤5mg |
Propeller installation hole: D: 20M 3 × 4, D: 23m 4 × 4 | Motor dynamic balancing: ≤10 mg |
Shaft diameter：IN: 15 mm | Motor mounting hole: D: 32m 4 × 4 |
Bearings: 6802ZZ * 2 | Coil voltage: 500V |
*
*
*
*
*
*
