Designed for professional aerial surveying and mapping exploration with equal endurance, 6s ~ 12V.
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Core Design, 24N28P multi-slot multi-stage.
Designed for professional aerial surveying and mapping exploration with equal endurance, 6s ~ 12V.
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Core Design, 24N28P multi-slot multi-stage.
14
Polar logarithm
180 °C
Enamelled wire grade
150 °C
Magnet class
500V
Coil voltage
Designed for professional aerial surveying and mapping exploration with equal endurance, 6s ~ 12V.
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Core Design, 24N28P multi-slot multi-stage.
The use of aviation aluminum, higher strength, to provide you with better security guarantees.
Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency.
The use of high-quality imported bearings, more stable rotation, more resistant to fall.
The use of high performance and high temperature resistant arc-shaped magnetic discs improves performance by 5% .

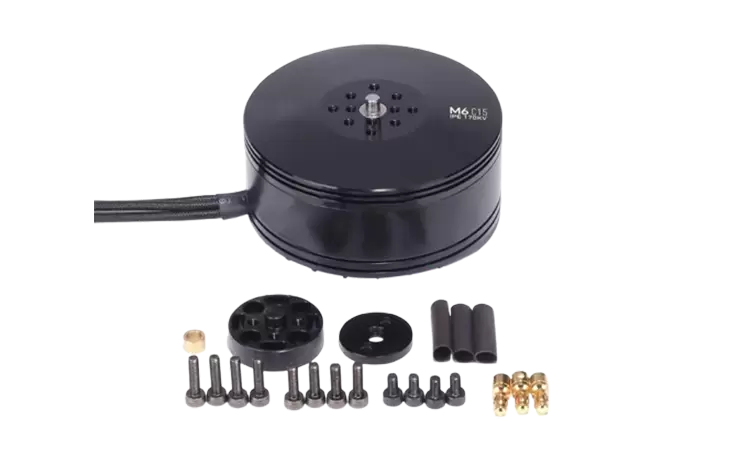

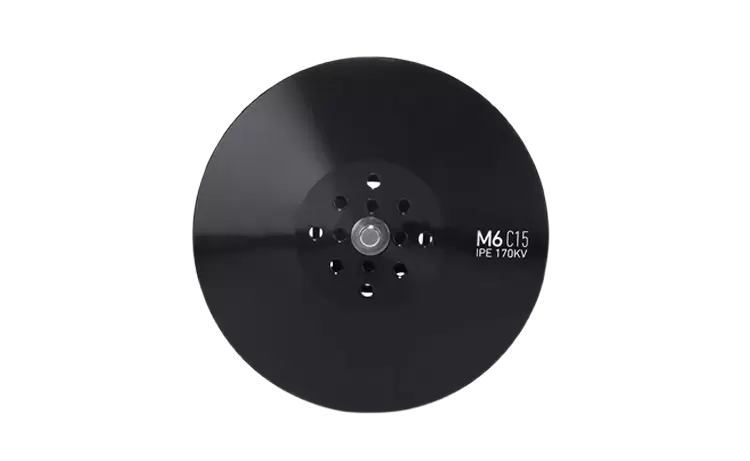

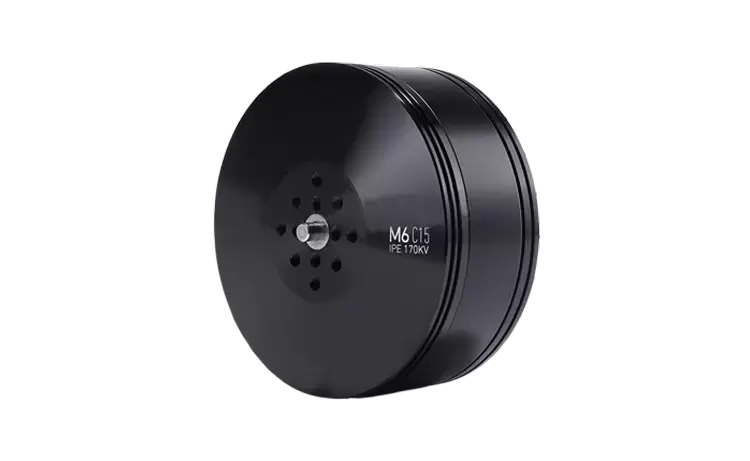

Motor Model：M6C15 IPE V3.0 | Polar logarithm: 14 |
Stator core: Taiwan/surface antirust treatment | Enamelled wire grade: 180 °C |
Motor Size: D: 72 × 38.4 mm | Magnet class: 150 °C |
Protection level: IP45 | Outlet specification: 150 mm -No.-no. 16 black silicone wire) |

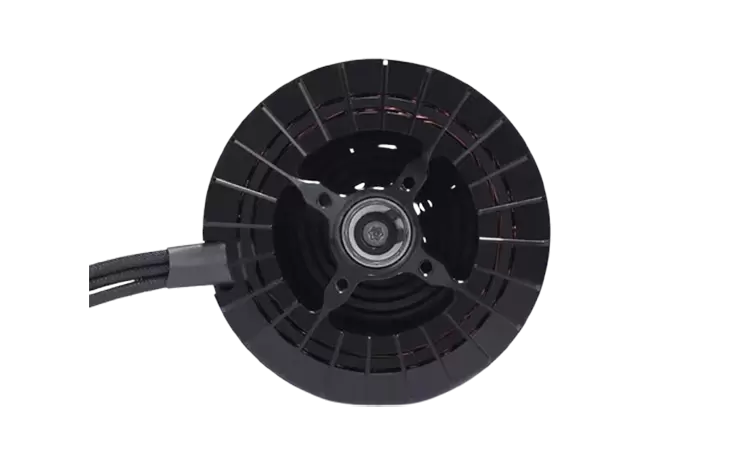

Centrifugal cooling design: YES | Rotor dynamic balancing: ≤5mg |
Propeller installation hole: D: 12m 3 × 4, D: 18m 3 × 4, D: 22M 3 × 4 | Motor dynamic balancing: ≤10 mg |
Shaft diameter：IN: 6 mm | Motor mounting hole: D: 25m 3 × 4 |
Bearings：EZO 696ZZ *2 | Coil voltage: 500V |
*
*
*
*
*
*
