Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Design, 12N14P multi-slot multi-stage.
Maximum degree of hollow-out design, ultra-light weight.
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Design, 12N14P multi-slot multi-stage.
Maximum degree of hollow-out design, ultra-light weight.
7
Polar logarithm
150 °C
Enamelled wire grade
150 °C
Magnet class
500V
Coil voltage
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Design, 12N14P multi-slot multi-stage.
Maximum degree of hollow-out design, ultra-light weight.
Open design for maximum heat dissipation.
Motor installation hole position standardization, versatility, adapt to a variety of rack installation.
Use of extremely durable imported high-quality bearings, more stable rotation, more resistant to fall.

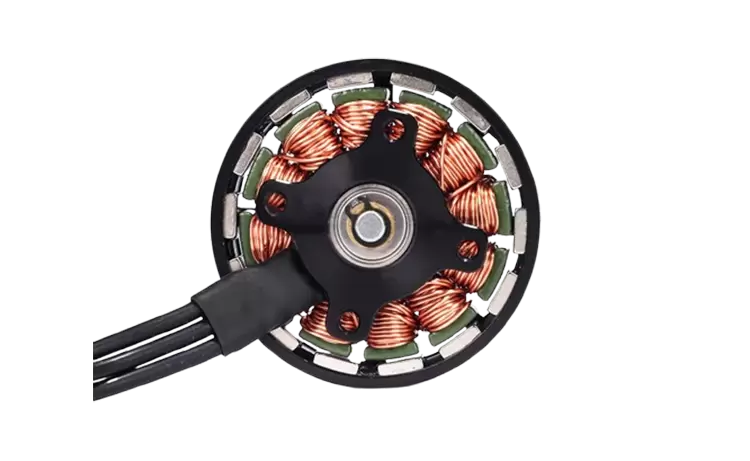

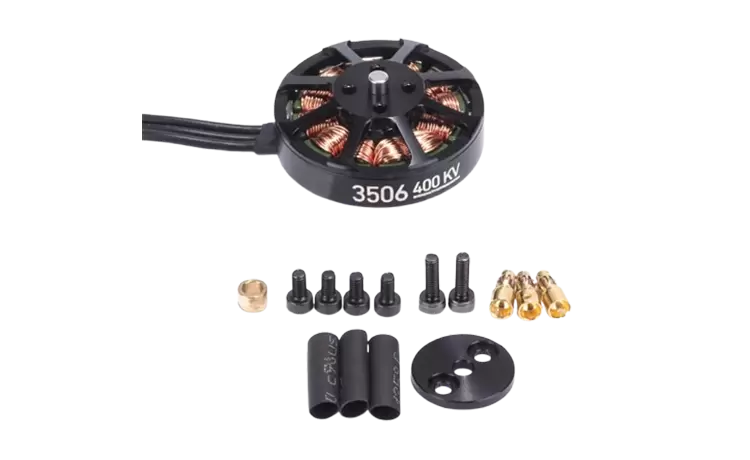

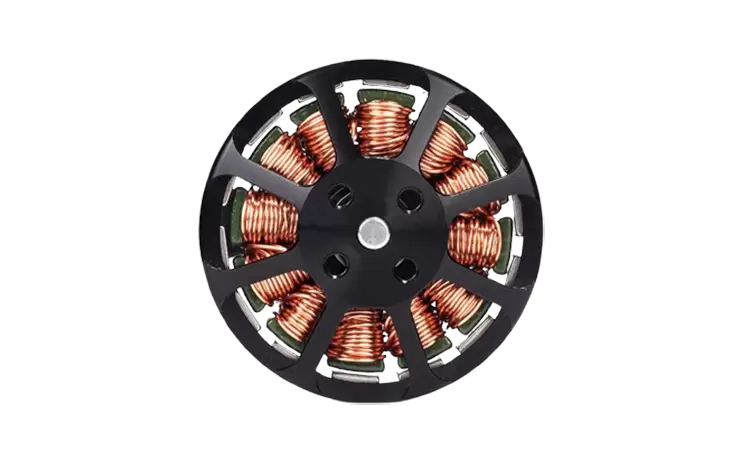

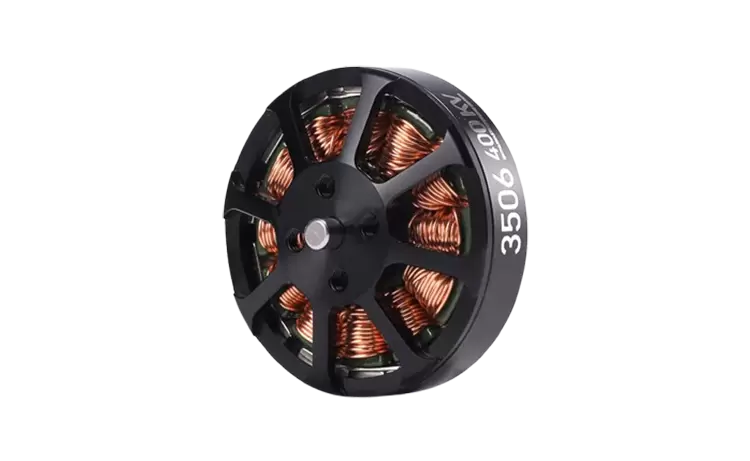

Motor Model: 3506EEE V3.0 | Polar logarithm: 7 |
Stator core: imported material/surface antirust treatment | Enamelled wire grade: 150 °C |
Motor size: D: 42.5 × 23.8 mm | Magnet class: 150 °C |
Protection Class: rainproof | Outlet specification: 150 mm -LRB-weldNo. no. 18 silicone wire) |
Centrifugal heat dissipation design: independent heat dissipation | Rotor dynamic balancing: ≤5mg |
Propeller mounting hole: D: 12m 3 × 4 | Motor dynamic balancing: ≤10 mg |
Shaft diameter：IN: 5 mm | Motor mounting hole: D: 25m 3 × 4 |
Bearings：EZO 694ZZ*2 | Coil voltage: 500V |
*
*
*
*
*
*
