Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Design, 12N14P multi-slot multi-stage.
Maximum closed design, ultra-light weight.
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Design, 12N14P multi-slot multi-stage.
Maximum closed design, ultra-light weight.
7
Polar logarithm
IP35
Protection level
150 °C
Magnet class
500V
Coil voltage
Pure manual winding, full slot rate is high, the appearance is neat.
Unique Motor Design, 12N14P multi-slot multi-stage.
Maximum closed design, ultra-light weight.

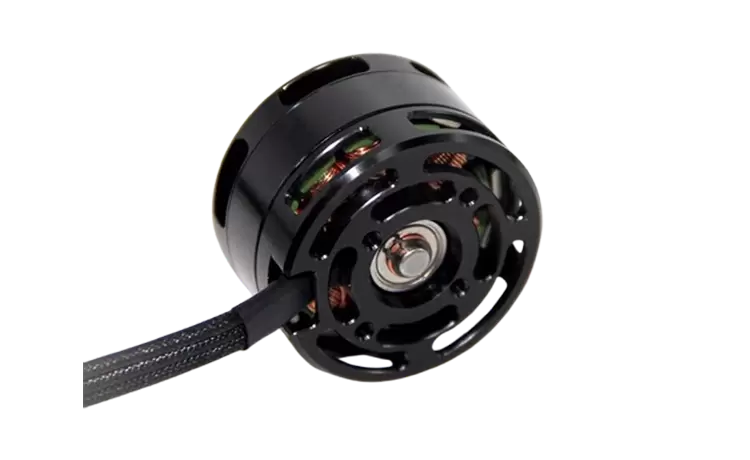

Open design for maximum heat dissipation.
Motor installation hole position standardization, versatility, adapt to a variety of rack installation.
Use of extremely durable imported high-quality bearings, more stable rotation, more resistant to fall.

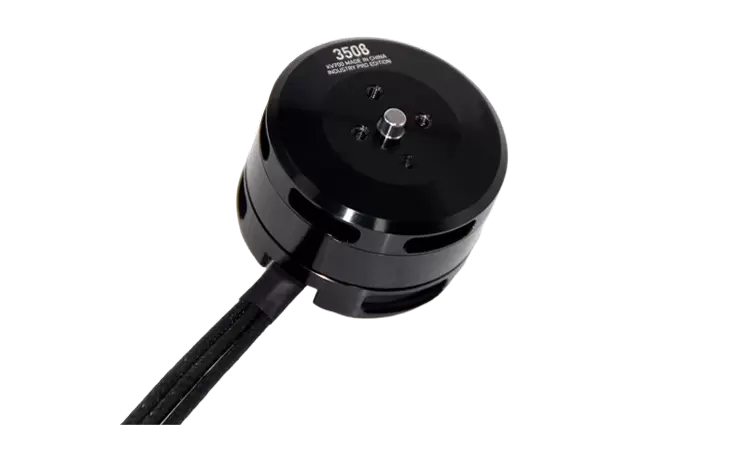

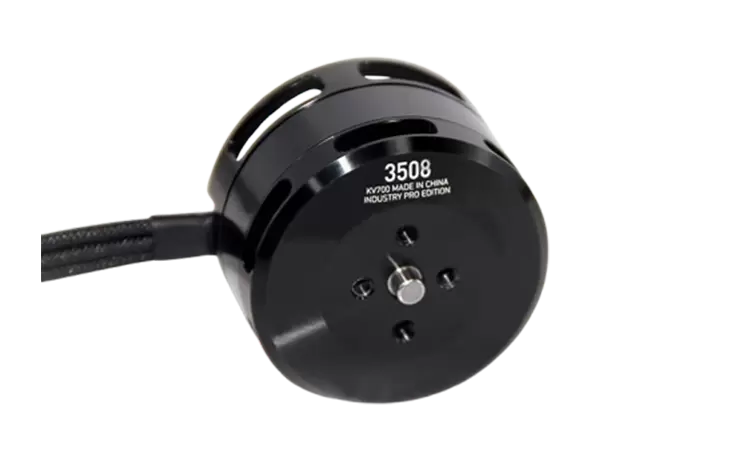

Motor model: 3508ipe V1.0 | Polar logarithm: 7 |
Stator core: imported material/surface antirust treatment | Enamelled wire grade: 150 °C |
Motor Size: D: 42.5 x 30.5 mm | Magnet class: 150 °C |
Protection level: IP35 | Outlet specification: 150 mm -No.-no. 18 silicone wire) |
Centrifugal cooling design: YES | Rotor dynamic balancing: ≤5mg |
Propeller installation hole: D: 12m 3 × 2D: 15m 3 × 2 | Motor dynamic balancing: ≤10 mg |
Shaft diameter：IN: 5 mm | Motor mounting hole: D: 19m 3 × 2D: 25M 3 × 2 |
Bearings：EZO 685ZZ*1 / EZO 695ZZ*1 | Coil voltage: 500V |
*
*
*
*
*
*
