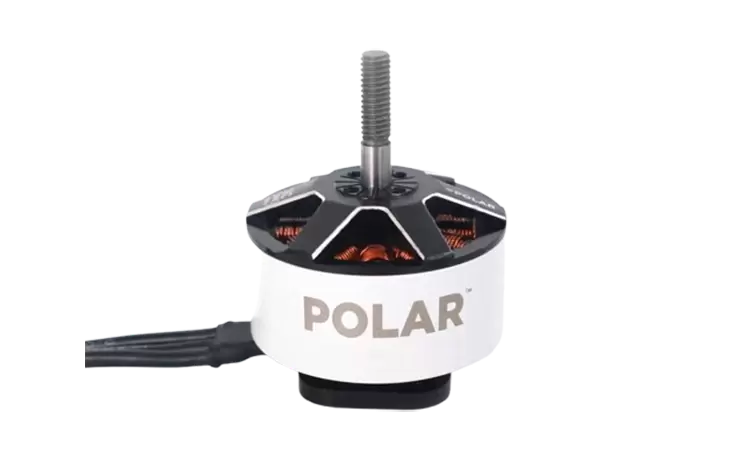

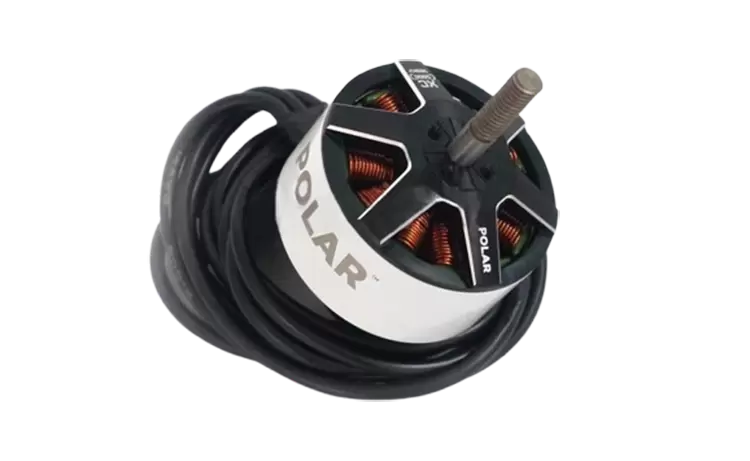

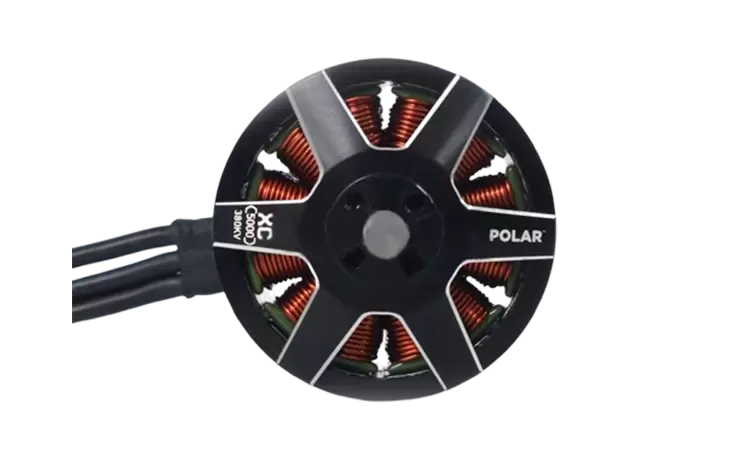

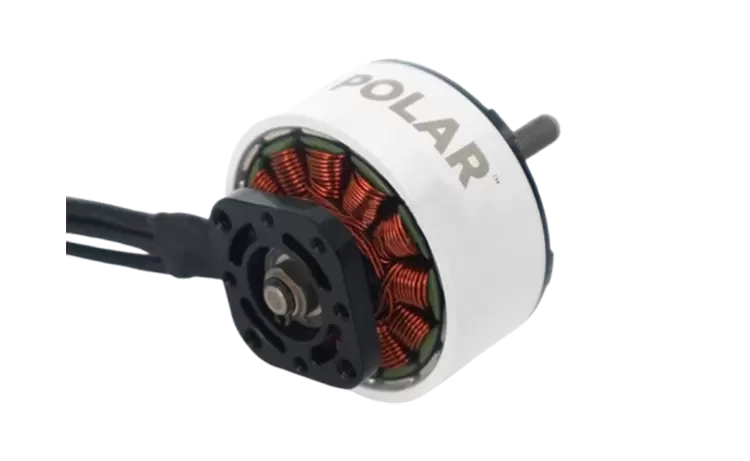

Polar XC5000
Polar XC5000
Polar XC5000
Polar XC5000
Polar XC5000
Polar XC5000
Polar XC5000
Polar XC5000

Polar XC5000

Designed for professional aerial surveying and mapping exploration with equal endurance, 10S ~ 12S voltage.

The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.

Unique Motor Core Design, 12N14P multi-slot multi-stage.

Polar XC5000

  • 7

    Polar logarithm

  • 50 × 67.9 mm

    Motor Size: D

  • 6 mm

    Shaft diameter: IN

  • 500V

    Coil voltage

Product Feature

  • Designed for professional aerial surveying and mapping exploration with equal endurance, 10S ~ 12S voltage.

  • The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.

  • Unique Motor Core Design, 12N14P multi-slot multi-stage.

  • The use of 6061-T6 aviation aluminum, higher strength, to provide you with better security guarantees.

  • Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency.

  • The use of durable high-quality EZO imported bearings, more stable rotation, more resistant to fall.

  • Using high-performance high-temperature arc-shaped magnetic disc, the performance is improved by 5% .

Product Parameters

Motor Model:Polar XC5000 V1.0

Polar logarithm: 7

Stator core: Japan/imported material

Enamelled wire grade: 180 °C

Motor Size: D: 50 × 67.9 mm

Magnet class: 150 °C

Protection Class: rainproof

Outlet specification: 750 mm (14 # AWG (black) silicone)

Centrifugal heat dissipation design: independent heat dissipation

Rotor dynamic balancing: ≤5mg

Propeller installation hole: D: 12m 3 × 4/m 6nut

Motor dynamic balancing: ≤10 mg

Shaft diameter:IN: 6 mm

Motor mounting hole: D: 25m 3 × 4, D: 30M 4 × 4

Bearings:EZO 686ZZ *2 / EZO 696ZZ

Coil voltage: 500V
