Designed for professional aerial mapping exploration with equal endurance, 6s voltage.
The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.
Unique Motor Core Design, 12N14P multi-slot multi-stage.
Designed for professional aerial mapping exploration with equal endurance, 6s voltage.
The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.
Unique Motor Core Design, 12N14P multi-slot multi-stage.
7
Polar logarithm
50 × 67.9 mm
Motor Size: D
6 mm
Shaft diameter: IN
500V
Coil voltage
Designed for professional aerial mapping exploration with equal endurance, 6s voltage.
The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.
Unique Motor Core Design, 12N14P multi-slot multi-stage.
The use of 6061-T6 aviation aluminum, higher strength, to provide you with better security guarantees.
Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency.
The use of durable high-quality EZO imported bearings, more stable rotation, more resistant to fall.
Using high-performance high-temperature arc-shaped magnetic disc, the performance is improved by 5% .

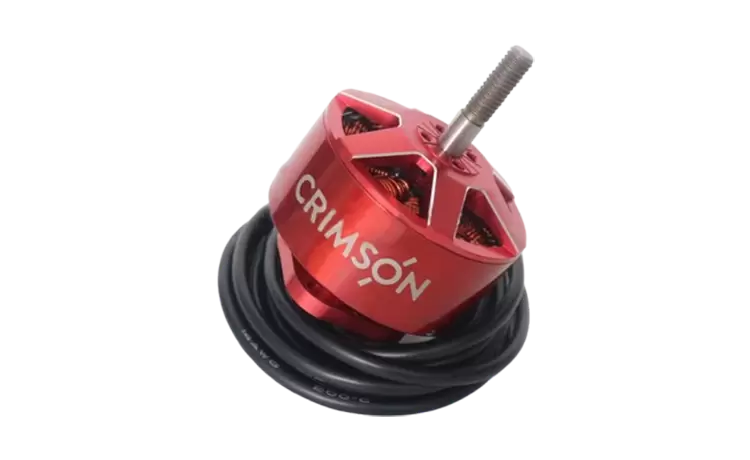

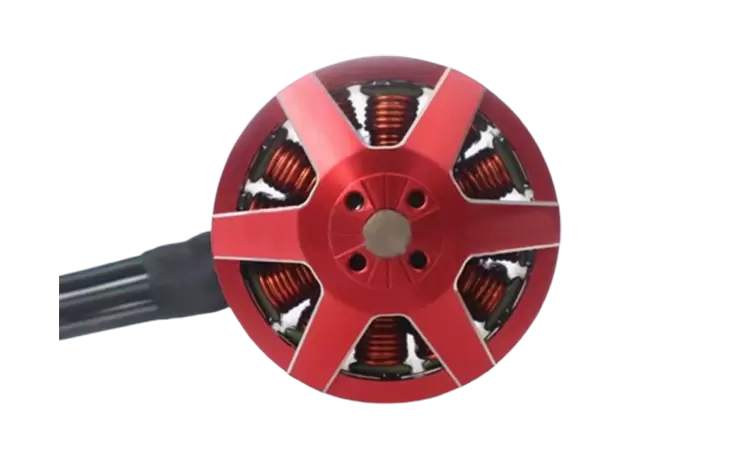

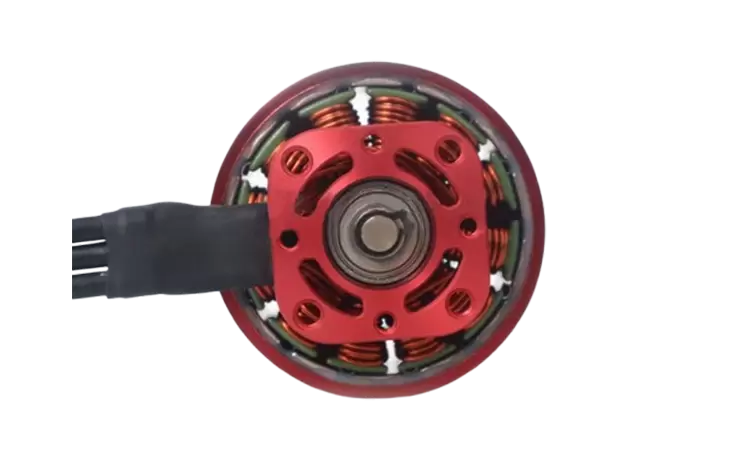

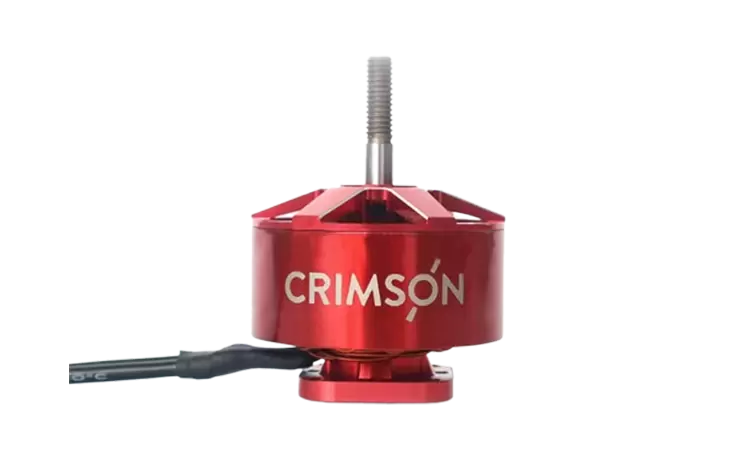

Motor Model：Crimson XC5500 V1.0 | Polar logarithm: 7 |
Stator core: imported material/surface antirust treatment | Enamelled wire grade: 180 °C |
Motor Size: D: 50 × 67.9 mm | Magnet class: 150 °C |
Protection Class: rainproof | Outlet specification: 750 mm (14 # AWG (black) silicone) |
Centrifugal heat dissipation design: independent heat dissipation | Rotor dynamic balancing: ≤5mg |
Propeller installation hole: D: 12m 3 × 4/m 6nutt | Motor dynamic balancing: ≤10 mg |
Shaft diameter：IN: 6 mm | Motor mounting hole: D: 25m 3 × 4, D: 30M 4 × 4 |
Bearings：EZO 686ZZ *2 / EZO 696ZZ | Coil voltage: 500V |
*
*
*
*
*
*
