The design idea is optimized according to the structural characteristics and complex use scenarios of X8 coaxial twin propeller installation, and the overall motor protection level is improved.
The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.
7
Polar logarithm
33.6 × 44.8 mm
Motor Size: D
m 5 Nut
Propeller mounting hole
5 mm
Shaft diameter: IN
The design idea is optimized according to the structural characteristics and complex use scenarios of X8 coaxial twin propeller installation, and the overall motor protection level is improved.
The maximum degree of hollow-out design, ultra-light weight, fast heat dissipation.
Unique Motor Core Design, 12N14P multi-slot multi-stage.
The use of aviation aluminum, higher strength, to provide you with better security guarantees.
The use of high-quality imported bearings, more stable rotation, more resistant to fall.
Using high-performance high-temperature arc-shaped magnetic disc, the performance is improved by 5% .

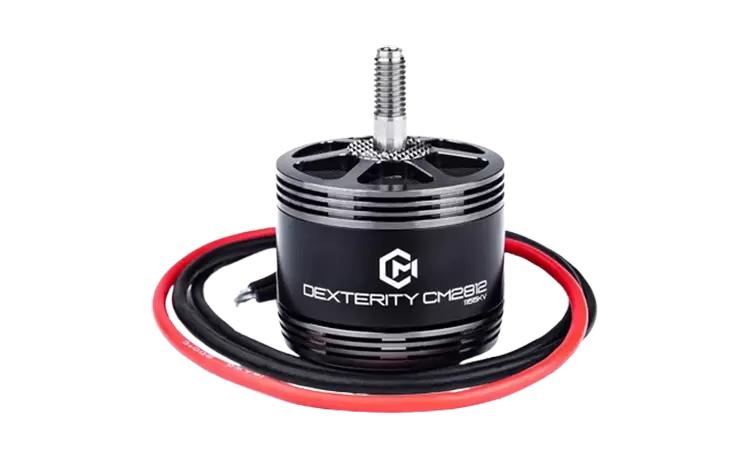

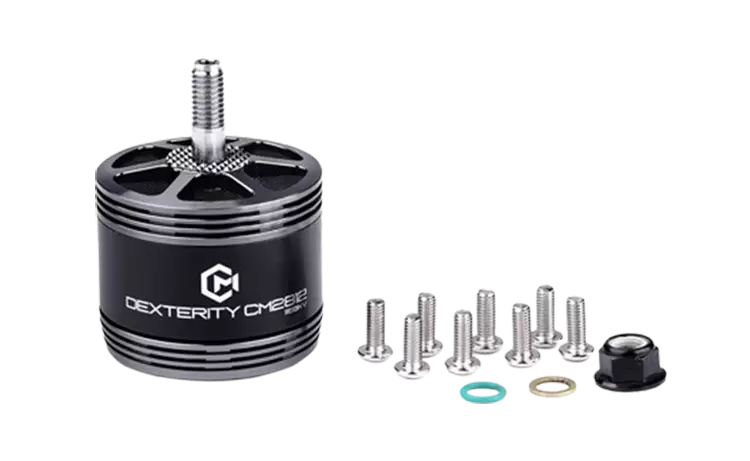

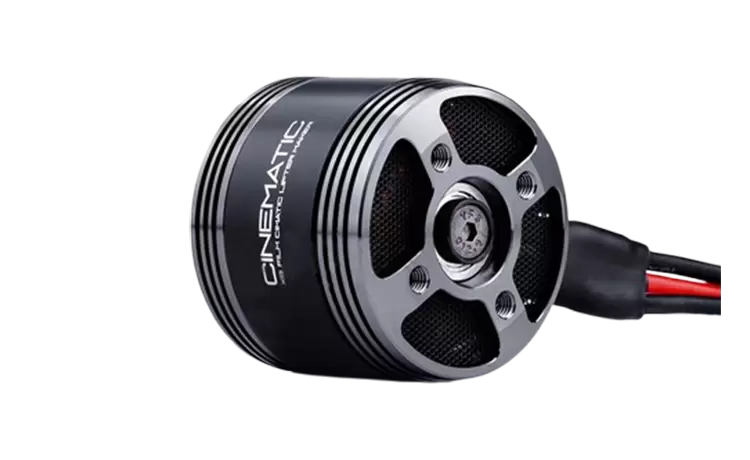

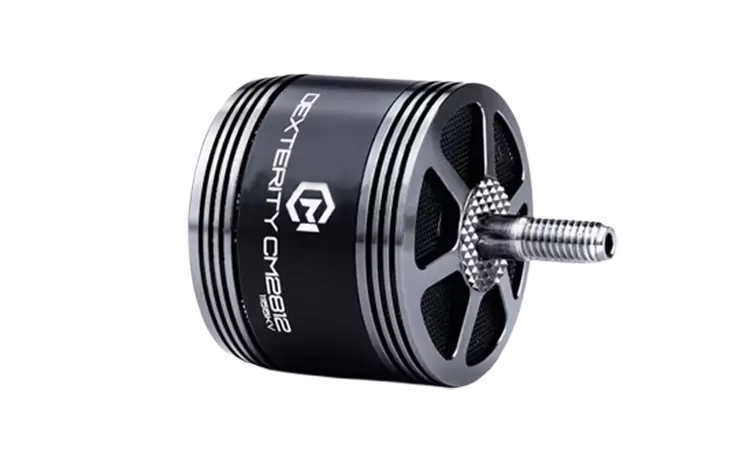

Motor Model: Dexterity CM2812 V1.0 | Polar logarithm: 7 |
Stator core: imported material/Surface Antirust treatment | Enamelled wire grade: 220 °C |
Motor Size: D: 33.6 × 44.8 mm | Magnet class: 150 °C |
Propeller mounting hole: m 5nut | Outlet specification: 250 mm -No.-no. 18(black/red) silicone wire) |
Shaft diameter: IN: 5 mm | Motor mounting hole: D: 19m 3 × 4 |
Bearings: 685 * 2 | Coil withstand voltage test: 500v |
*
*
*
*
*
*
